Carbon Steel In-Line Check Valve RV-25-01.X/5-0, 25 Nominal Size
Carbon Steel In-Line Check Valve RV-25-01.X/5-0, 25 Nominal Size
SKU:ACC-85ded1
Durable Carbon Steel In-Line Check Valve for precise flow control in industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Carbon Steel In-Line Check Valve RV-25-01.X/5-0, 25 Nominal Size
$149.99
Quantity: 1
Claim Your Seller Account
Carbon Steel In-Line Check Valve RV-25-01.X/5-0, 25 Nominal Size
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel In-Line Check Valve RV-25-01.X/5-0 is a high-performance flow control valve suitable for various industrial applications. With a port configuration of NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread, this valve ensures reliable and precise flow regulation. Featuring a metal-to-metal seal design and a hardened steel poppet, it offers exceptional durability and performance. Operating at a maximum pressure of 345 bar (5000 psi) and a flow rate of 150 gpm, this valve is designed to meet the rigorous demands of industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

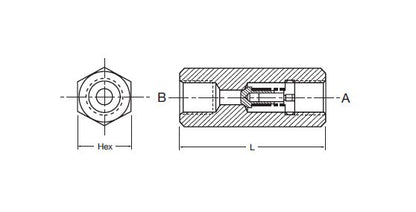

Dimensions Dimension L
5.63 in | 143 mm
Dimensions Hex Size
2 3/8 in | 60 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications End Size
1-1/4 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-25-01.X/5- 0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
25
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 1/4 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
