Carbon Steel Inline Check Valves
Carbon Steel Inline Check Valves
SKU:ACC-418c99
Reliable Carbon Steel Inline Check Valves for precise flow control in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Carbon Steel Inline Check Valves
$129.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Inline Check Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

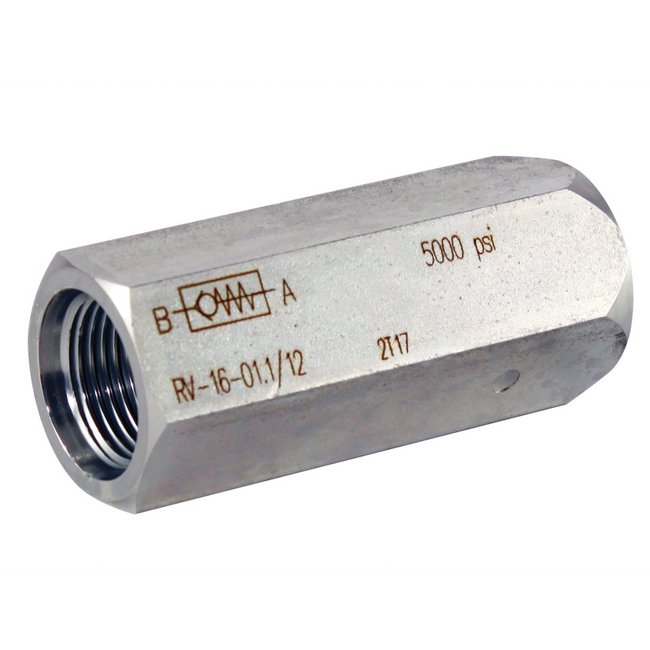

The Carbon Steel Inline Check Valves are designed for precise flow control in industrial settings. Featuring a metal-to-metal seal design, hardened steel poppet, and inline mounting for easy integration, these valves ensure efficient operation. With a maximum pressure of 5000 psi and a temperature range from -4°F to 212°F, they are ideal for various applications. Note: Not recommended for high-cycle operations. Verify critical dimensions with a certified print.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0

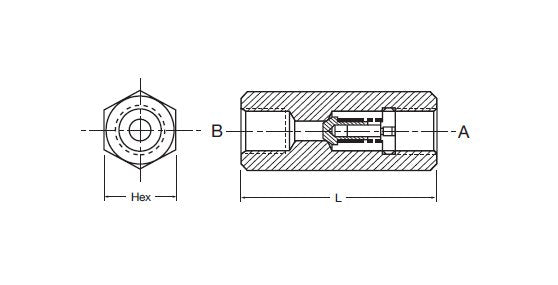

Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Housing Material
Carbon Steel
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
FLUPAC MODEL 98280 - INLINE CHECK VALVE
Specifications Mounting Type
Inline Mounting
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
