Carbon Steel Isolation Valve - KHZ Series
Carbon Steel Isolation Valve - KHZ Series
SKU:ACC-5e50b8
Enhance hydraulic system efficiency with the Carbon Steel Sandwich Isolation Valve from KHZ series. CETOP certified, ideal for high-pressure environments.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Carbon Steel Isolation Valve - KHZ Series
$239.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Isolation Valve - KHZ Series
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

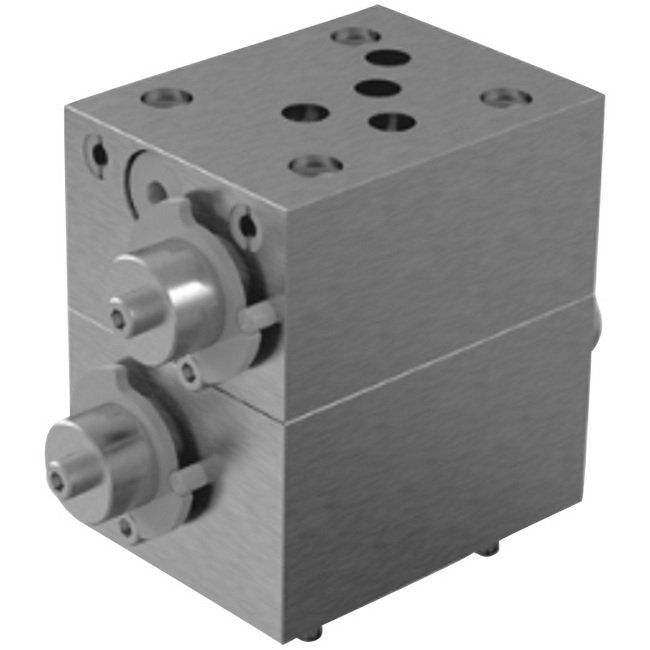

The Carbon Steel Sandwich Isolation Valve from the KHZ series is designed for efficient isolation and locking of directional valves on manifolds, reducing downtime during hydraulic system maintenance. Crafted with industry-leading standards including CETOP, DIN 24340, and DIN ISO 4403 certifications, this valve ensures reliable performance in high-pressure environments up to 4569 psi. With a sturdy zinc plating, Nitrile-Butadiene Rubber O-Ring, and a weight of 5.35 kg, this valve is a durable and dependable solution for industrial applications.
Product Specifications
Dimensions Overall Height
4.35 in | 110.5 mm
Dimensions Overall Length
5.63 in | 143 mm
Dimensions Overall Width
2.76 in | 70 mm
Specifications Ambient Operating Temperature Max
80 ºC | 176 ºF
Specifications Ambient Operating Temperature Min
-10 ºC | 14 ºF
Specifications Body Material
Carbon Steel
Specifications Division
ACCESSORIES
Specifications Industry Standardscertifications
CETOP, DIN 24340, DIN ISO 4403
Specifications Mounting Type
manifold
Specifications Operating Pressure Max
315 bar | 4569 psi
Specifications O Ring Material
Nitrile-Butadiene Rubber (NBR)
Specifications Plating
Zinc
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Series
KHZ
Specifications Style
Sandwich Valve
Specifications Type
Isolation
Specifications Weight
5.35 kg | 11.80 lb
