Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
SKU:FIT-64a018
Carbon Steel Male Stud Coupling for high-pressure applications. Meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

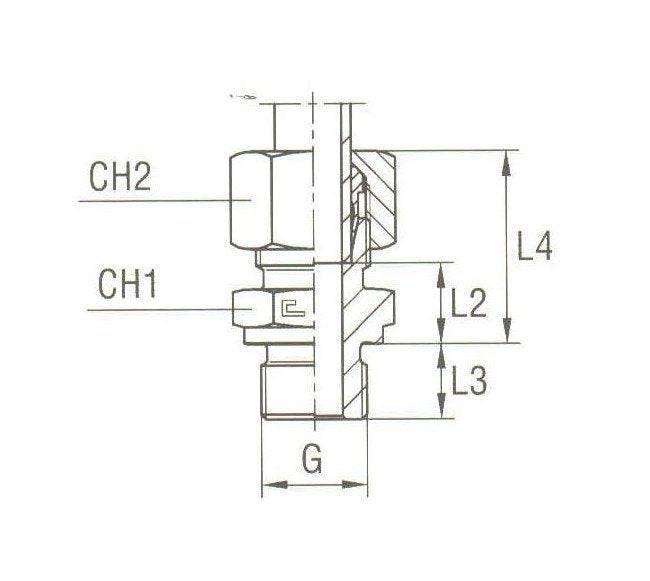

The Carbon Steel Male Stud Coupling Thread BSP Parallel with Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. This fitting, crafted from durable carbon steel, features a G-Thread Size of 3/8, Tube Diameter of 6.0 mm, and meets DIN 2353 standards. With precise measurements including L2: 11.5 mm, L3: 12.0 mm, L4: 26 mm, CH1: 22 mm, CH2: 14 mm, it ensures secure connections and reliable performance. Ideal for various hydraulic systems, this coupling delivers both performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
14 mm
Specifications G Thread Size
3/8
Specifications L2
11.5 mm
Specifications L3
12.0 mm
Specifications L4
26 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
