Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
SKU:FIT-781ac6
High-quality Carbon Steel Male Stud Coupling for secure and leak-free connections in light-duty applications. Meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Male Stud Coupling with O-Ring and Washer Thread BSP Parallel - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Made from high-quality carbon steel, it features a tube diameter of 6.0 mm and meets DIN 2353 standards. With precise dimensions and durable construction, this coupling ensures a secure and leak-free connection. Suitable for various industries requiring reliable fittings.

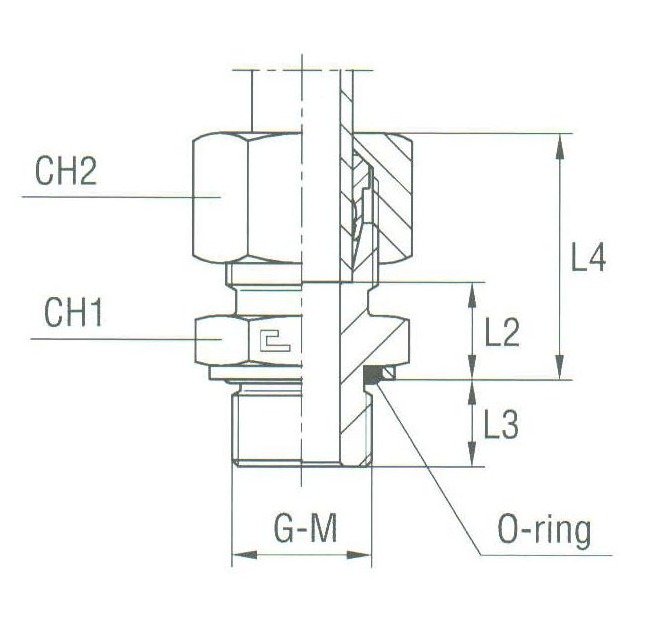

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
14 mm
Specifications G Thread Size
1/8
Specifications L2
8.3 mm
Specifications L3
6.7 mm
Specifications L4
22.8 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
