Carbon Steel Male Stud Coupling BSP Parallel with Equipped B3 Ring

Name: Carbon Steel Male Stud Coupling BSP Parallel with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-20ed20
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-20ed20

Premium Carbon Steel Male Stud Coupling for Light-Duty Applications. Meet DIN 2353 Standards.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Coupling BSP Parallel with Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality carbon steel, this fitting ensures durability and reliability. With precise dimensions including a 3/4 inch G-Thread size and compliance with DIN 2353 standards, it guarantees seamless integration and performance in fluid systems.

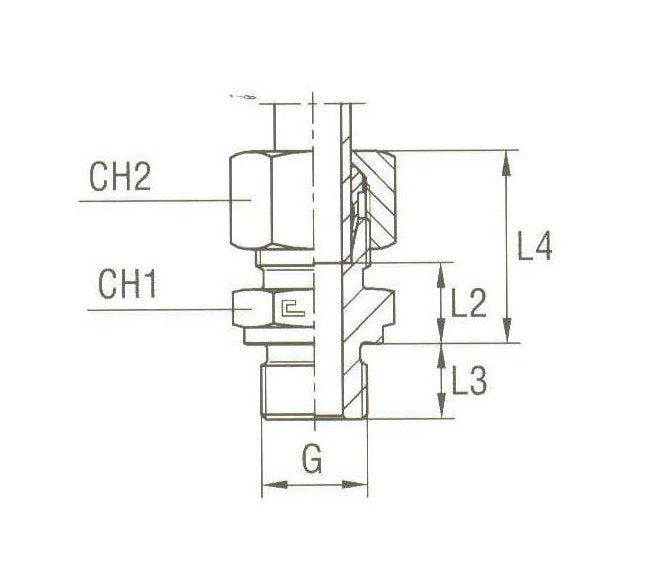

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

32 mm

Specifications G Thread Size

3/4

Specifications L2

14.5 mm

Specifications L3

16.0 mm

Specifications L4

31 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm

Category 6

Male Stud Coupling Thread BSP Parallel

Carbon Steel Male Stud Coupling BSP Parallel with Equipped B3 Ring
