Carbon Steel Male Stud Coupling Metric Parallel - Body Only

Name: Carbon Steel Male Stud Coupling Metric Parallel - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-f503e9
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-f503e9

Durable Carbon Steel Male Stud Coupling for 42.0mm tubes. Pressure: 160 bar. Conforms to DIN 2353.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

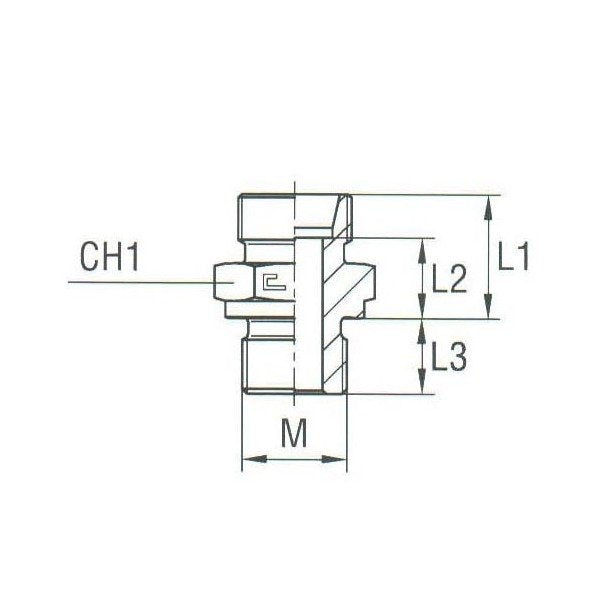

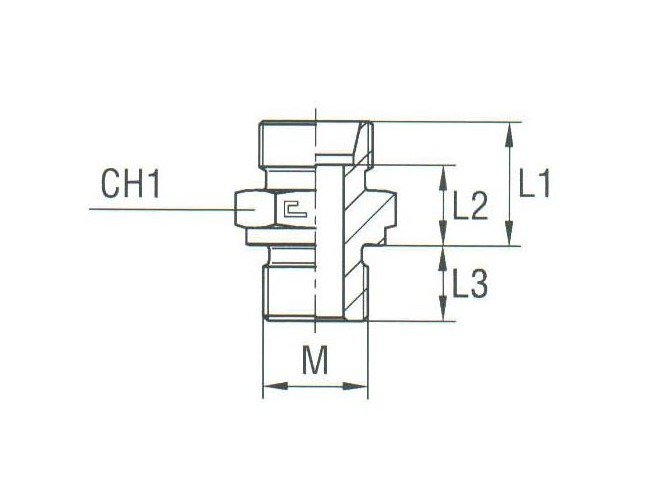

The Carbon Steel Male Stud Coupling Metric Parallel - Body Only is designed for light-duty applications with a tube diameter of 42.0 mm and an M - Thread Size of 48x2. With a nominal operating pressure of 160 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, it offers precise dimensions including L1: 30.0 mm, L2: 19.0 mm, L3: 22.0 mm, and CH1: 55 mm. Suitable for various industrial settings, this coupling provides durability and efficiency.

Product Specifications

Specifications Ch1

55 mm

Specifications L1

30.0 mm

Specifications L2

19.0 mm

Specifications L3

22.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

48x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

42.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
