Carbon Steel Male Stud Coupling Metric Parallel - DIN 2353 Compliant

Name: Carbon Steel Male Stud Coupling Metric Parallel - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-9f1079
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-9f1079

Durable Carbon Steel Male Stud Coupling Metric Parallel for hydraulic systems. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

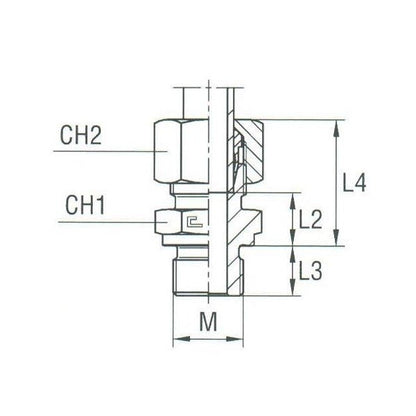

The Carbon Steel Male Stud Coupling Metric Parallel - Equipped B3 Ring is designed for light-duty applications, featuring a tube diameter of 8.0 mm and a M - Thread Size of 18x1.5. With a nominal operating pressure of 315 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, it has precise dimensions (L2: 11.5mm, L3: 12.0mm, L4: 26.5mm) and key CH1 and CH2 measurements. Trust this coupling for durability and efficiency in your hydraulic systems.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

17.0 mm

Specifications L2

11.5 mm

Specifications L3

12.0 mm

Specifications L4

26.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel

Carbon Steel Male Stud Coupling Metric Parallel - DIN 2353 Compliant
