Carbon Steel Male Stud Coupling - Metric Parallel Thread (Body Only)

Name: Carbon Steel Male Stud Coupling - Metric Parallel Thread (Body Only)
Brand: World Wide Metric, Inc.
SKU: FIT-b5652d
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-b5652d

Durable Carbon Steel Male Stud Coupling with precise DIN 2353 compliance for light-duty hydraulic applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

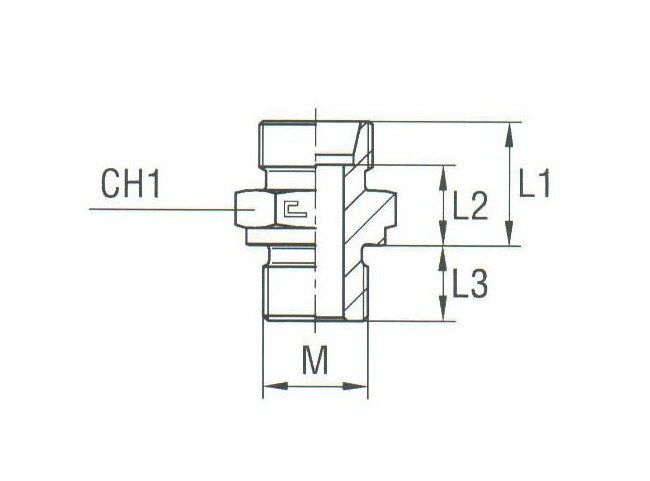

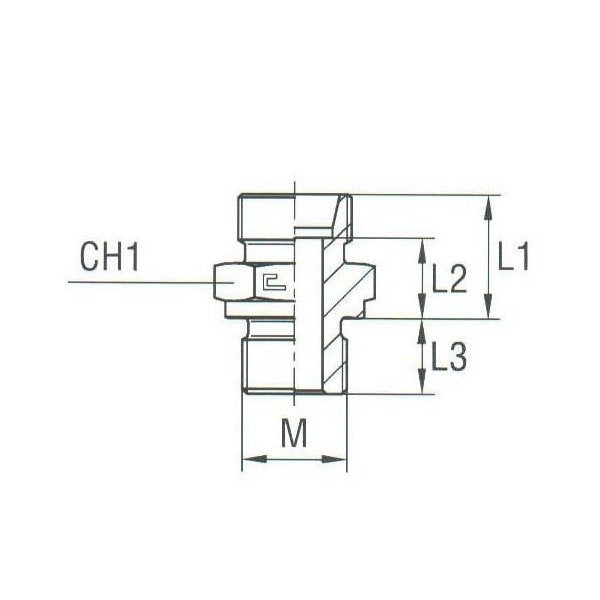

The Carbon Steel Male Stud Coupling features a M22x1.5 thread size with precise DIN 2353 compliance, suitable for light-duty applications. With a tube diameter of 18.0mm and a nominal operating pressure of 315 bar, this coupling offers durability and reliability in hydraulic systems. Its compact design, measuring L1-22mm, L2-14.5mm, and L3-14.0mm, ensures efficient fitting in tight spaces. CH1-27mm dimension provides ease of installation, meeting stringent DIN 2353 standards for quality and performance.

Product Specifications

Specifications Ch1

27 mm

Specifications L1

22 mm

Specifications L2

14.5 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
