Carbon Steel Male Stud Coupling - Metric Parallel Thread with Equipped B3 Ring

Name: Carbon Steel Male Stud Coupling - Metric Parallel Thread with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-c569c1
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-c569c1

Durable carbon steel male stud coupling for light-duty applications in compliance with DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Carbon Steel Male Stud Coupling with Metric Parallel Thread and Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 160 bar. Made to DIN 2353 standards, this fitting ensures reliability and durability. With precise specifications including a Tube Diameter of 28mm and M - Thread Size of 33x2, it delivers optimal performance in various industrial settings.

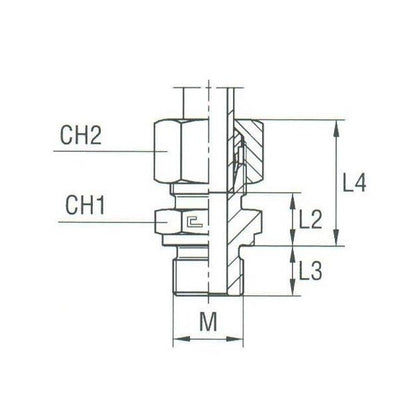

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

41 mm

Specifications L2

17.5 mm

Specifications L3

18.0 mm

Specifications L4

34 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

33x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

28 mm

Category 6

Male Stud Coupling Thread Metric Parallel

Carbon Steel Male Stud Coupling - Metric Parallel Thread with Equipped B3 Ring
