Carbon Steel Male Stud Coupling Metric Parallel with DIN 2353 Standard Compliance
Carbon Steel Male Stud Coupling Metric Parallel with DIN 2353 Standard Compliance
SKU:FIT-7f532f
Reliable carbon steel male stud coupling for light-duty applications, meets DIN 2353 standard.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling Metric Parallel with DIN 2353 Standard Compliance
$34.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling Metric Parallel with DIN 2353 Standard Compliance
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling Thread Metric Parallel - Equipped B4 Ring is a reliable fitting designed for light-duty applications with a pressure rating of 160 bar. Constructed from carbon steel, it ensures durability and longevity. With a tube diameter of 42.0 mm and precise M-thread size of 48x2, this coupling offers secure connections. Meeting DIN 2353 standards, it guarantees quality and compliance for institutional and government procurement.

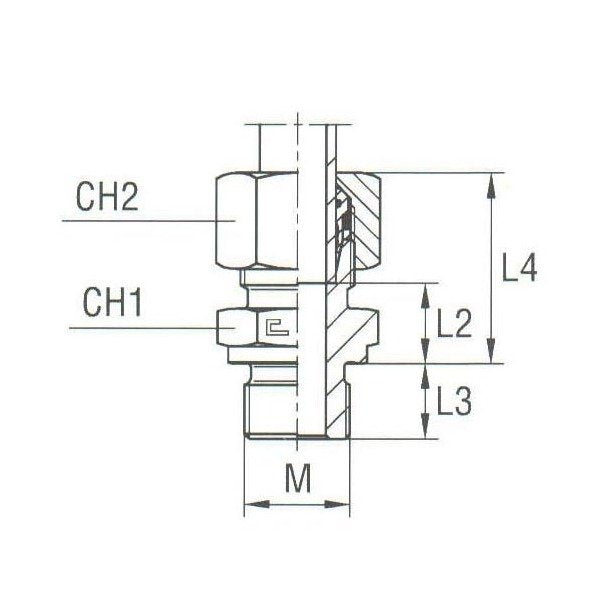

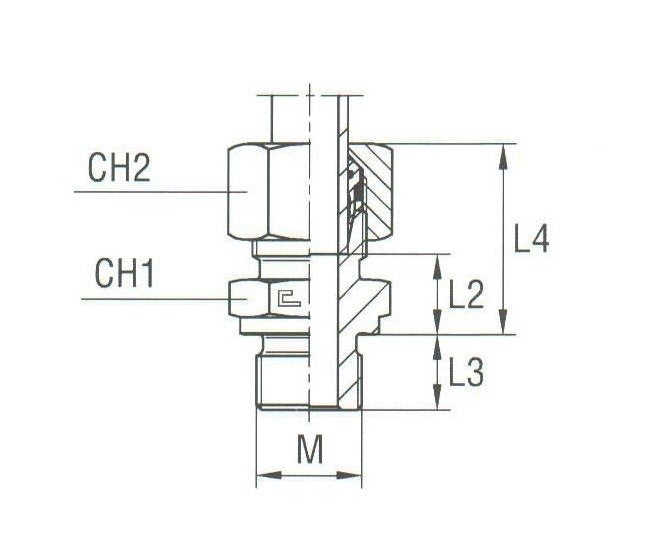

Product Specifications
Specifications Ch1
55 mm
Specifications Ch2
60 mm
Specifications L2
19.0 mm
Specifications L3
22.0 mm
Specifications L4
42 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
Category 6
Male Stud Coupling Thread Metric Parallel
