Carbon Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
Carbon Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
SKU:FIT-b65b87
High-quality Carbon Steel Male Stud Coupling for hydraulic applications. DIN 2353 compliant, 6.0mm tube diameter, 315 bar pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling with Elastomer Seal - BSP Parallel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

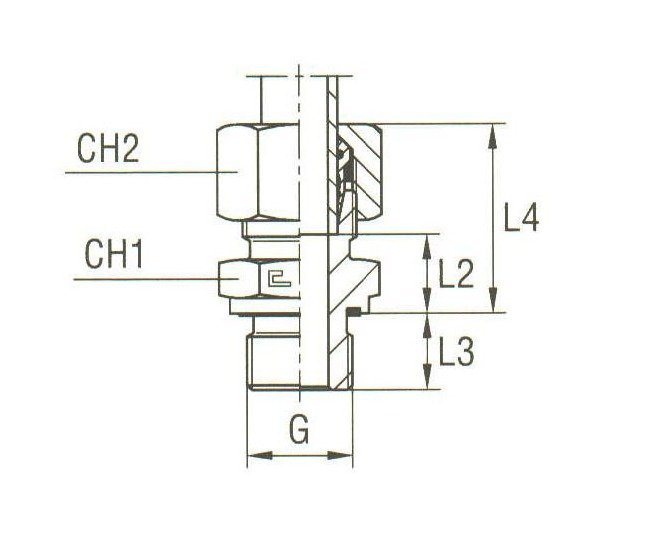

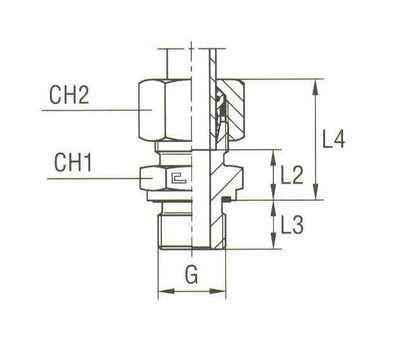

The Carbon Steel Male Stud Coupling with Elastomer Seal Thread BSP Parallel - Equipped B4 Ring is designed for light-duty applications with a tube diameter of 6.0mm. With a nominal operating pressure of 315 bar, this fitting meets DIN 2353 standards. The coupling features precise dimensions including L2: 8.5mm, L3: 8.0mm, L4: 23mm, CH1: 14mm, and CH2: 14mm, ensuring a secure and leak-free connection. Ideal for hydraulic systems, this coupling offers high performance and reliability.
Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
14 mm
Specifications G Thread Size
1/8
Specifications L2
8.5 mm
Specifications L3
8.0 mm
Specifications L4
23 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
