Carbon Steel Male Stud Coupling with Elastomer Seal - Metric Parallel

Name: Carbon Steel Male Stud Coupling with Elastomer Seal - Metric Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-1d4807
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-1d4807

High-quality Carbon Steel Male Stud Coupling with Elastomer Seal for light-duty applications, compliant with DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

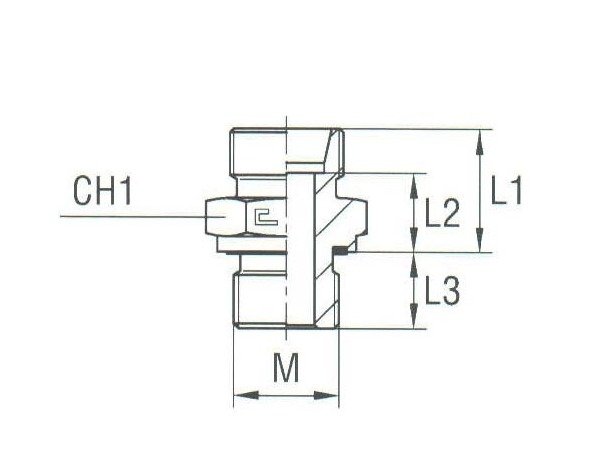

The Carbon Steel Male Stud Coupling with Elastomer Seal is designed for light-duty applications with a nominal operating pressure of 315 bar. This fitting features a tube diameter of 15.0 mm, M-thread size of 16x1.5, and complies with DIN 2353 standards. With precise dimensions including L1: 20.0 mm, L2: 13.0 mm, L3: 12.0 mm, and CH1: 24 mm, this coupling ensures a secure and leak-free connection, providing reliability and durability in various hydraulic systems.

Product Specifications

Specifications Ch1

24 mm

Specifications L1

20.0 mm

Specifications L2

13.0 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

15.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
