Carbon Steel Male Stud Coupling with O-Ring BSP Parallel

Name: Carbon Steel Male Stud Coupling with O-Ring BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-12f61b
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-12f61b

Premium Carbon Steel Male Stud Coupling with Viton Seal - DIN 2353 Compliant, 315 Bar

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Carbon Steel Male Stud Coupling with O-Ring BSP Parallel - Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from high-quality carbon steel, this coupling features a 8.0 mm tube diameter, 1/4 G thread size, and elastomeric Viton seal for reliable sealing. Compliant with DIN 2353 standards, it ensures durability and precision in hydraulic systems.

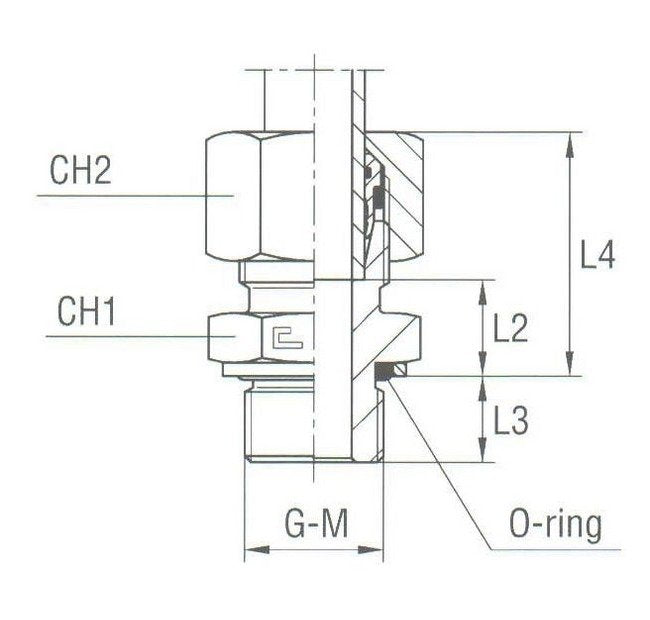

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

17.0 mm

Specifications G Thread Size

1/4

Specifications L2

9.8 mm

Specifications L3

10.2 mm

Specifications L4

24.8 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Sealing

Elastometric Viton Seal

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread BSP Parallel

Carbon Steel Male Stud Coupling with O-Ring BSP Parallel
