Carbon Steel Male Stud Coupling with O-Ring, Metric Parallel Thread - DIN 2353 Compliant
Carbon Steel Male Stud Coupling with O-Ring, Metric Parallel Thread - DIN 2353 Compliant
SKU:FIT-b42030
Discover durability and leak-free connections with our Carbon Steel Male Stud Coupling - DIN 2353 Compliant. Ideal for extra light-duty applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling with O-Ring, Metric Parallel Thread - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling with O-Ring, Metric Parallel Thread - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Male Stud Coupling with O-Ring and Washer Thread Metric Parallel - Equipped B3 Ring is designed for extra light-duty applications with a tube diameter of 6.0 mm and a pressure rating of 100 bar. Meeting DIN 2353 standards, this coupling ensures reliable performance and easy installation. With precise dimensions and high-quality materials, it offers durability and leak-free connections.
Ready to Grow Without Cash Flow Constraints?

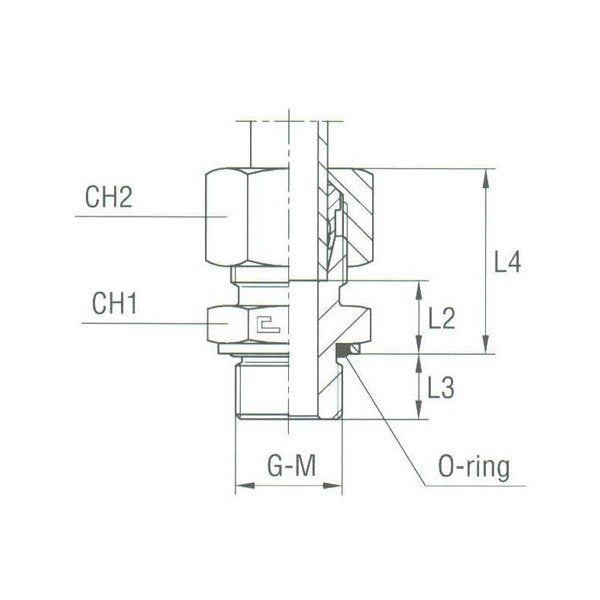

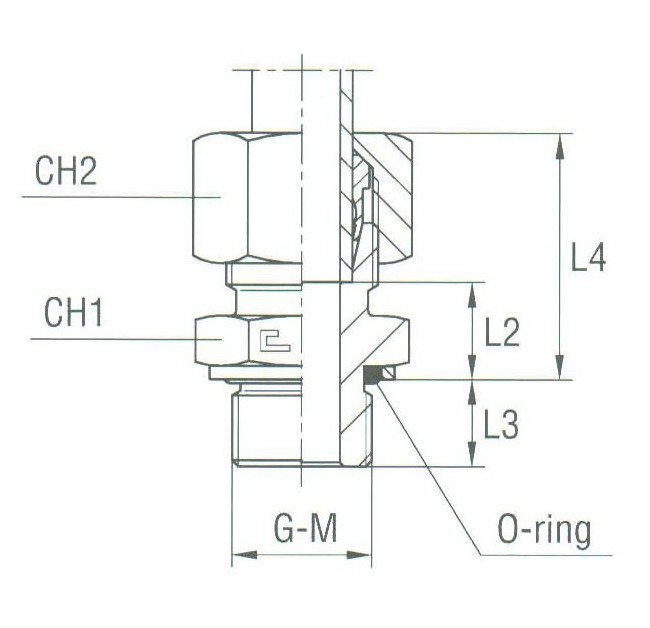

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
12 mm
Specifications L2
8.0 mm
Specifications L3
7.5 mm
Specifications L4
20 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
10x1
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Extra Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
