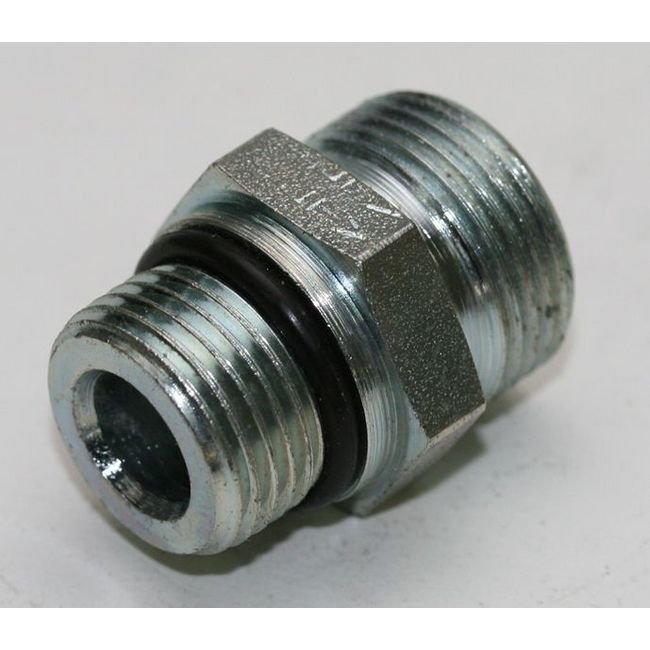

Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A

Name: Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-b9be39
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-b9be39

Premium Carbon Steel Male Stud Coupling for reliable hydraulic connections. DIN 2353 compliant, ideal for light-duty use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

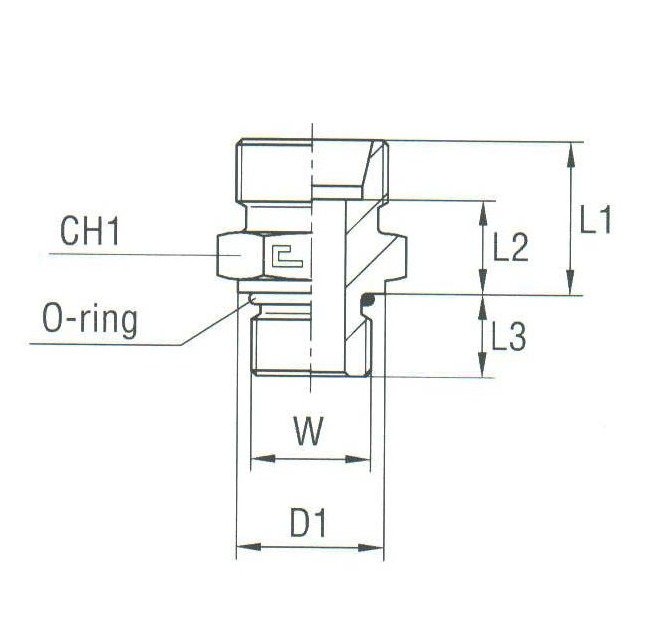

The Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A is designed for light-duty applications with a Tube Diameter of 42.0 mm and a Nominal Operating Pressure of 160 bar. Compliant with DIN 2353 standards, this fitting ensures reliable and secure connections in hydraulic systems. Its precise dimensions, including L1 (29.9 mm), L2 (18.9 mm), L3 (15.1 mm), CH1 (55 mm), and D1 (49.8 mm), make it ideal for straight male stud coupling applications.

Product Specifications

Specifications Ch1

55 mm

Specifications D1

49.8 mm

Specifications L1

29.9 mm

Specifications L2

18.9 mm

Specifications L3

15.1 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

42.0 mm

Specifications W Thread Size

1 5/8-12
