Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
SKU:FIT-eb8bca
Durable carbon steel male stud coupling for light-duty applications, 315 bar pressure, DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Constructed from durable carbon steel, this coupling ensures reliable performance. With a tube diameter of 12.0 mm and DIN 2353 compliance, it offers precise fittings for institutional and industrial use. The straight design, along with specific dimensions and threaded sizes, makes it ideal for various hydraulic systems.

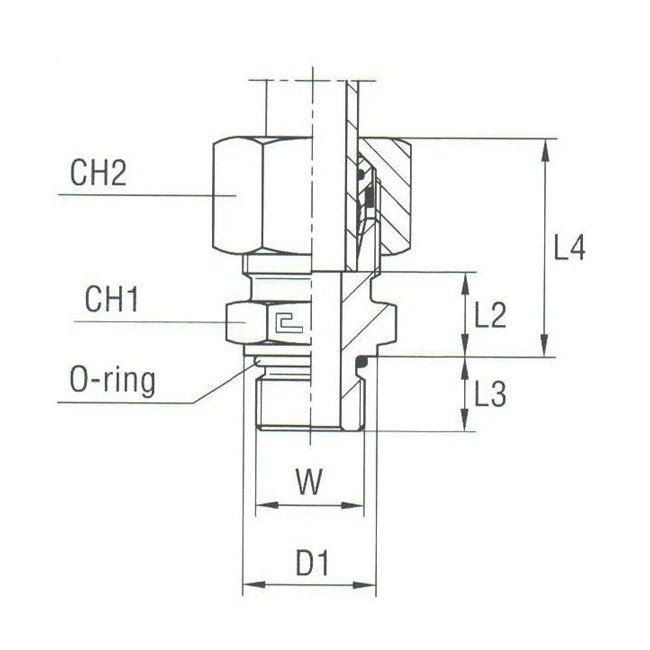

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
22 mm
Specifications D1
26.8 mm
Specifications L2
14.3 mm
Specifications L3
12.7 mm
Specifications L4
29 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Specifications W Thread Size
7/8-14
