Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A

Name: Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A
Brand: World Wide Metric, Inc.
SKU: FIT-be5553
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-be5553

High-quality Male Stud Coupling designed for light-duty applications, pressure up to 315 bar, DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Carbon Steel Male Stud Coupling with O-Ring Thread UNF/UN-2A - Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality carbon steel, it boasts a tube diameter of 10.0 mm and meets DIN 2353 standards. With precise dimensions and durable construction, this coupling ensures reliable performance and easy installation. Suitable for various industries requiring dependable fittings.

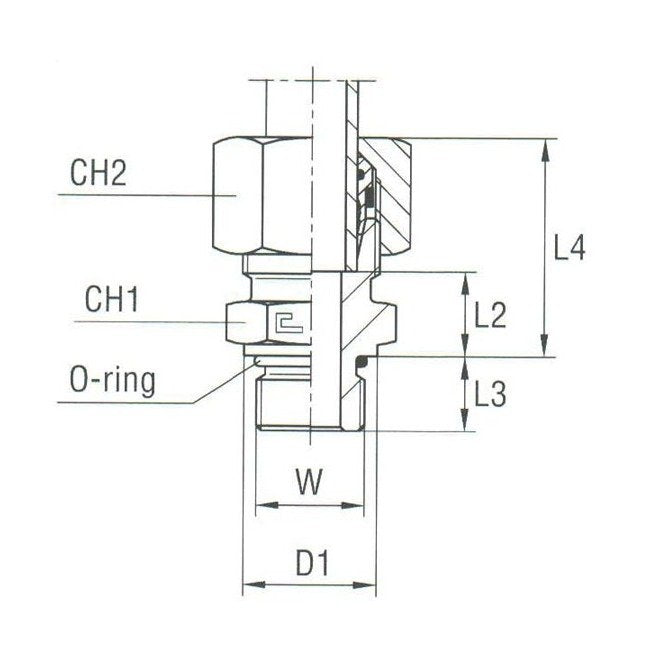

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

19.0 mm

Specifications D1

16.8 mm

Specifications L2

10.9 mm

Specifications L3

9.1 mm

Specifications L4

26 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Specifications W Thread Size

1/2-20
