Carbon Steel Male Stud Coupling with O-Ring, Washer Thread - 6.0mm, DIN 2353 Compliant
Carbon Steel Male Stud Coupling with O-Ring, Washer Thread - 6.0mm, DIN 2353 Compliant
SKU:FIT-cf4edf
Durable Carbon Steel Male Stud Coupling for Light-Duty Applications, DIN 2353 Compliant
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Carbon Steel Male Stud Coupling with O-Ring, Washer Thread - 6.0mm, DIN 2353 Compliant
$28.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male Stud Coupling with O-Ring, Washer Thread - 6.0mm, DIN 2353 Compliant
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling with O-Ring and Washer Thread Metric Parallel is a durable fitting made of carbon steel, designed for light-duty applications. This coupling features a tube diameter of 6.0mm and can withstand a nominal operating pressure of up to 315 bar. With M - Thread Size of 10x1 and meeting DIN 2353 standards, this coupling ensures reliable performance and easy installation. Ideal for various industrial settings requiring precision and quality.

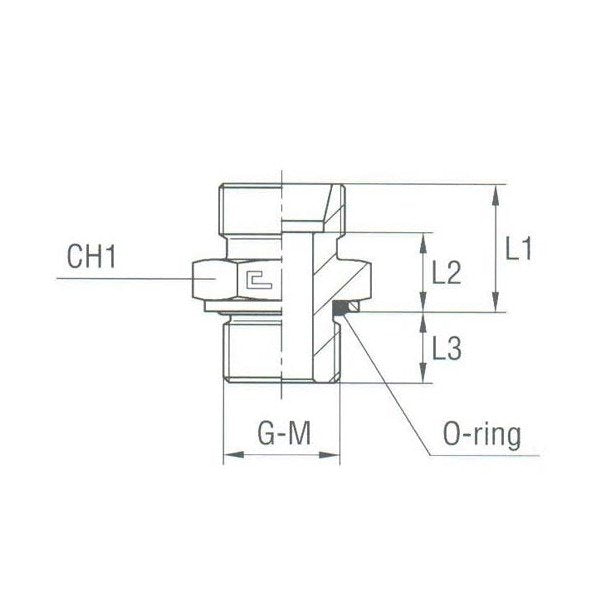

Product Specifications
Specifications Ch1
14 mm
Specifications L1
15.5 mm
Specifications L2
8.5 mm
Specifications L3
7.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
10x1
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
