Carbon Steel Male x Female Round-Handle Mini Needle Valve
Carbon Steel Male x Female Round-Handle Mini Needle Valve
SKU:MIN-72dfbe
Durable Carbon Steel Mini Needle Valve for precise flow control in high-pressure applications. Ideal for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Male x Female Round-Handle Mini Needle Valve
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Male x Female Round-Handle Mini Needle Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

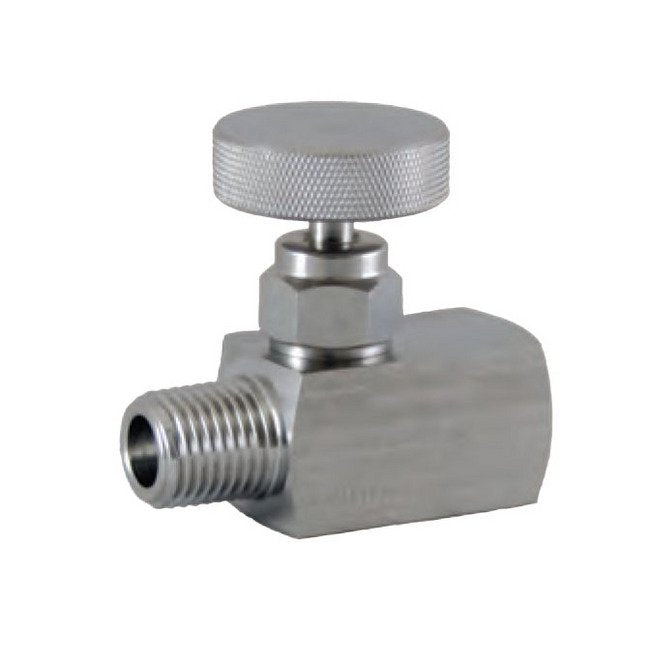

The Carbon Steel Male x Female Round-Handle Mini Needle Valve is a reliable solution for precision flow control in industrial applications. With a pressure rating of 6000 psi, this valve ensures optimal performance. Constructed from durable carbon steel with a 304 stainless steel stem, it guarantees longevity and resistance to corrosion. The PTFE stem packing, Fluorocarbon O-Ring, and POM/Acetal Soft Seat enhance sealing and prevent leaks. Its compact design, featuring dimensions of 1.85 x 0.47 x 1.97 inches, makes it ideal for space-restricted installations. Note: Not recommended for pressures exceeding 4000 psi due to the round handle design.
Product Specifications
Technical Specs Body Material
Carbon Steel
Technical Specs Bonnet Material
Carbon Steel

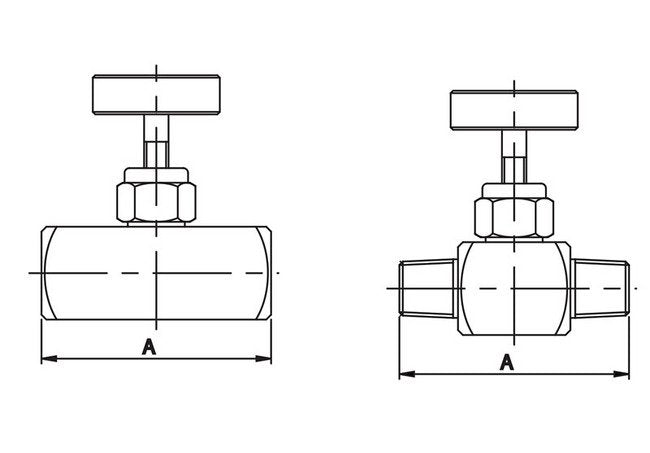

Technical Specs Dimension A
1.85 in
Technical Specs Dimension B
0.47 in
Technical Specs Dimension C
1.97 in
Technical Specs Dimension D
1.02 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
Carbon Steel
Technical Specs Material
Carbon Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
304 Stainless
Technical Specs Thread Type
Male x Female
