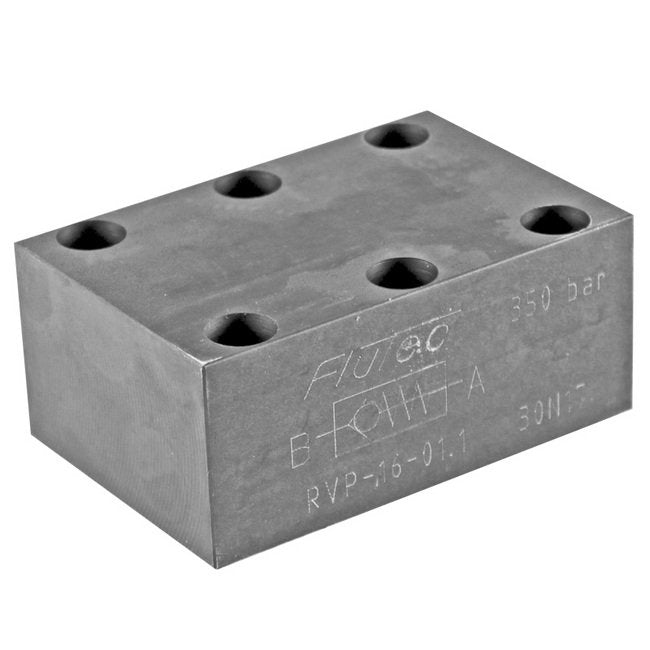

Carbon Steel Manifold Mounting Flow Control Valves
Carbon Steel Manifold Mounting Flow Control Valves
SKU:ACC-d33563
Enhance fluid control with our precision-designed Carbon Steel Flow Control Valves. Ideal for various applications with a cracking pressure of 0.7 bar | 9 psi.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Carbon Steel Manifold Mounting Flow Control Valves
$89.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Manifold Mounting Flow Control Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid control with our Carbon Steel Manifold Mounting Flow Control Valves. Crafted for precision, these valves feature a metal-to-metal seal design, hardened steel poppet, and a cracking pressure of 0.7 bar | 9 psi. With a maximum operating pressure of 345 bar | 5000 psi, these valves are suitable for a range of applications. Please note, they are not recommended for high-cycle use. Trust in our valves for reliability and performance in your fluid control systems.
Product Specifications
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.7 bar | 9 psi
Specifications Dimension L
7.72 in | 196 mm
Specifications Division
ACCESSORIES
Specifications Housing Material
Carbon Steel
Specifications Kinematic Viscosity At 86 F30 C
335 SUS
Specifications Model Code Description
RVP-30-01.X
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Sizes
30
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Short Description
RVP Check valves
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.1 kg | 0.22 lb
