Carbon Steel Rod Ends
Carbon Steel Rod Ends
SKU:ROD-3194d4
High-quality Carbon Steel Rod Ends for automotive, industrial, and diverse industry use. Female type, Right thread variant for optimal performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Carbon Steel Rod Ends are precision-engineered for durability and reliability in automotive vehicles, industrial machines, and various industries. With body material of carbon steel and ball material of 52100 Bearing Steel, Heat Treated HRC58-64 Hard Chrome Plated, these rod ends offer exceptional performance and longevity. Featuring a Female type and Right thread variant, they meet stringent quality standards and are ideal for heavy-duty applications.
Ready to Grow Without Cash Flow Constraints?

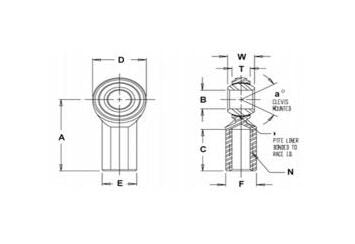

Product Specifications
Specifications Approx Weight
0.04 lbs
Specifications A Length 0015 0015
1.062 in
Specifications A Mis Angle Ref
20
Specifications Ball
0.437 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.1900 in
Specifications C Length 0062 0031
0.500 in
Specifications D Dia 0010 0010
0.625 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
10-32
Specifications Rod End Variants
RET-3T
Specifications Static Radial Load
2,437 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.234 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.312 in
