Carbon Steel Rod Ends
Carbon Steel Rod Ends
SKU:ROD-ca0b6d
High-performance Carbon Steel Rod Ends with 6061-T6 Aluminum body, 52100 Bearing Steel balls, Heat Treated, and Hard Chrome Plated for automotive and industrial applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends
$34.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Rod Ends are precision-engineered with 52100 Bearing Steel balls, Heat Treated for durability, and Hard Chrome Plated for lasting performance. Featuring a 6061-T6 Aluminum body and Teflon Fabric lining, these rod ends offer unmatched strength and corrosion resistance. With a static radial load capacity of 9,563 lbs and compliance with industry standards, they are ideal for automotive vehicles, industrial machines, and various industries' applications.

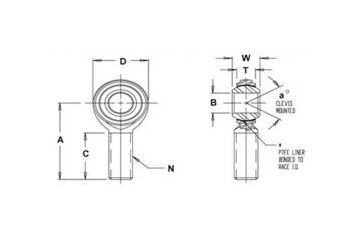

Product Specifications
Specifications Approx Weight
0.24 lbs
Specifications A Length 0015 0015
2.438 in
Specifications A Mis Angle Ref
20
Specifications Ball
0.937 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RECR-8T
Specifications Static Radial Load
9,563 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications T Width
0.453 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.625 in
