Carbon Steel Rod Ends - Heavy-Duty Male/Female, 52100 Bearing Steel
Carbon Steel Rod Ends - Heavy-Duty Male/Female, 52100 Bearing Steel
SKU:ROD-e4140a
High-performance Carbon Steel Rod Ends with 52100 Bearing Steel balls. Ideal for automotive and industrial use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends - Heavy-Duty Male/Female, 52100 Bearing Steel
$39.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends - Heavy-Duty Male/Female, 52100 Bearing Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles and industrial machines with our heavy-duty Carbon Steel Rod Ends. Precision-made with 52100 Bearing Steel, Heat Treated HRC58-64 Hard Chrome Plated ball material, these rod ends offer exceptional performance. Featuring a 0.375-inch body diameter, 1.000-inch ball diameter, and 0.500-inch width, they withstand static radial loads up to 5,926 lbs. With Teflon fabric lining and UNF 3A threads, our rods meet stringent quality standards and are designed for durability and reliability in various applications.

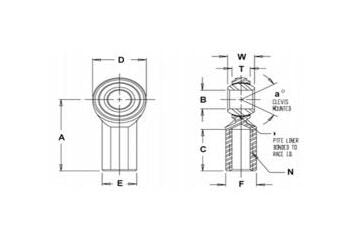

Product Specifications
Specifications Approx Weight
0.13 lbs
Specifications A Length 0015 0015
1.625 in
Specifications A Mis Angle Ref
22
Specifications Ball
0.719 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.3750 in
Specifications C Length 0062 0031
0.812 in
Specifications D Dia 0010 0010
1.000 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
3/8-24
Specifications Rod End Variants
RET-6T
Specifications Static Radial Load
5,926 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.359 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.500 in
