Carbon Steel Rod Ends - Male/Female, Right Thread, 5/8-18 UNF 3A
Carbon Steel Rod Ends - Male/Female, Right Thread, 5/8-18 UNF 3A
SKU:ROD-a7324d
Premium Carbon Steel Rod Ends for automotive and industrial applications. Durable, precise, and compliant with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends - Male/Female, Right Thread, 5/8-18 UNF 3A
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends - Male/Female, Right Thread, 5/8-18 UNF 3A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Rod Ends are meticulously crafted with 52100 Bearing Steel balls, Heat Treated HRC58-64 Hard Chrome Plating, and a body made of Carbon Steel with Silver or Yellow Zinc Plating, ensuring exceptional durability and performance in automotive vehicles, industrial machines, and various industries. With precise dimensions and Teflon Fabric Lining, these rod ends offer a Static Radial Load of 10,801 lbs, meeting stringent industry standards and delivering reliability in diverse applications.
Ready to Grow Without Cash Flow Constraints?

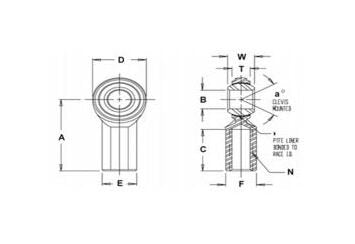

Product Specifications
Specifications Approx Weight
0.43 lbs
Specifications A Length 0015 0015
2.500 in
Specifications A Mis Angle Ref
26
Specifications Ball
1.125 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.375 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RET-10T
Specifications Static Radial Load
10,801 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.484 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
