The Carbon Steel Rod Ends are precision-engineered for strength and durability, featuring a Body Material of Carton Steel with Silver or Yellow Zinc Plating for enhanced corrosion resistance. The Ball Material is 52100 Bearing Steel, Heat Treated with HRC58-64 Hard Chrome Plating, ensuring reliable performance under heavy loads. With industry-standard dimensions and a threaded design for secure attachment, these rod ends are commonly used in automotive vehicles, industrial machines, and various other applications.
Ready to Grow Without Cash Flow Constraints?

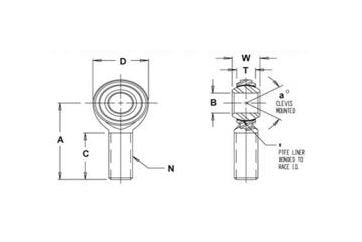

Product Specifications
Specifications Approx Weight
0.56 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
26
Specifications Ball
1.125 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
3/4-16
Specifications Rod End Variants
RECR-1012T
Specifications Static Radial Load
16,922 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications T Width
0.484 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
