Carbon Steel Rod Ends - Male Variant
Carbon Steel Rod Ends - Male Variant
SKU:ROD-569609
High-performance Carbon Steel Rod Ends for automotive and industrial applications. Precision-engineered with durable materials for superior strength and reliability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends - Male Variant
$39.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends - Male Variant
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Rod Ends in Male Variant are precision-engineered with 52100 Bearing Steel balls, heat treated for superior strength and durability. Featuring a body material of Carton Steel with silver or yellow zinc plating, these rod ends offer exceptional performance in automotive vehicles, industrial machines, and various other industries. With precise dimensions, high load capacity, and Teflon fabric-lined liners, these rod ends ensure reliable operation in demanding applications. Complying with stringent industry standards, these rod ends deliver optimal performance and longevity.
Ready to Grow Without Cash Flow Constraints?

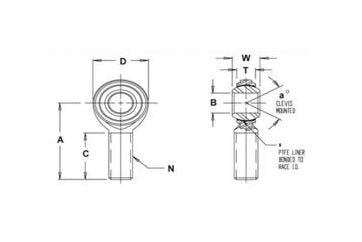

Product Specifications
Specifications Approx Weight
0.15 lbs
Specifications A Length 0015 0015
2.125 in
Specifications A Mis Angle Ref
21
Specifications Ball
0.812 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.4375 in
Specifications C Length 0062 0031
1.375 in
Specifications D Dia 0010 0010
1.125 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
7/16-20
Specifications Rod End Variants
RECR-7T
Specifications Static Radial Load
7,445 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications T Width
0.406 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.562 in
