Carbon Steel Rod Ends - Male Variant
Carbon Steel Rod Ends - Male Variant
SKU:ROD-c5143e
Premium Carbon Steel Rod Ends for automotive & industrial use. High strength, precise dimensions, and Teflon Fabric Liner for smooth operation & durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends - Male Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Rod Ends - Male Variant offer exceptional durability and precision for a wide range of applications in automotive vehicles, industrial machines, and various industries. Constructed with high-quality 52100 Bearing Steel, Heat Treated HRC58-64 Hard Chrome Plated balls and 6061-T6 Aluminum bodies, these rod ends ensure reliable performance under demanding conditions. With precise dimensions and a Teflon Fabric Lined liner, they provide smooth articulation and support heavy static radial loads up to 2,835 lbs. Ideal for mission-critical operations where quality and longevity are paramount.
Ready to Grow Without Cash Flow Constraints?

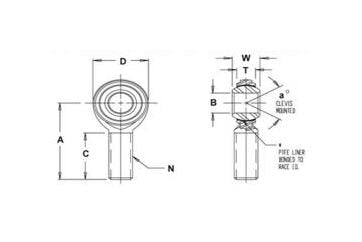

Product Specifications
Specifications Approx Weight
0.04 lbs
Specifications A Length 0015 0015
1.562 in
Specifications A Mis Angle Ref
27
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
1.000 in
Specifications D Dia 0010 0010
0.750 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
1/4-28
Specifications Rod End Variants
RECRL-4T
Specifications Static Radial Load
2,835 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications T Width
0.250 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
