Carbon Steel Rod Ends - Male Variant, Right Thread
Carbon Steel Rod Ends - Male Variant, Right Thread
SKU:ROD-4cf689
High-quality Carbon Steel Rod Ends for automotive and industrial applications, ensuring durability and precision performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Rod Ends - Male Variant, Right Thread
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Rod Ends - Male Variant, Right Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Rod Ends are precision-engineered for durability and reliability, featuring a Body Material of Carton Steel with Silver or Yellow Zinc Plating for corrosion resistance. The Ball Material is 52100 Bearing Steel, Heat Treated HRC58-64 Hard Chrome Plated, ensuring optimal performance. These Rod Ends come with various specifications such as B Diameter of 0.5000 in, N Thread UNF 3A of 1/2-20, and a Static Radial Load capacity of 9,563 lbs, making them ideal for automotive, industrial, and other applications. Compliant with industry standards for quality and performance.

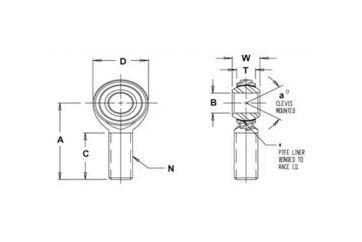

Product Specifications
Specifications Approx Weight
0.24 lbs
Specifications A Length 0015 0015
2.438 in
Specifications A Mis Angle Ref
20
Specifications Ball
0.937 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Carton Steel, Silver Or Yellow Zinc Plated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Teflon Fabric Lined
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RECRL-8T
Specifications Static Radial Load
9,563 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications T Width
0.453 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.625 in
