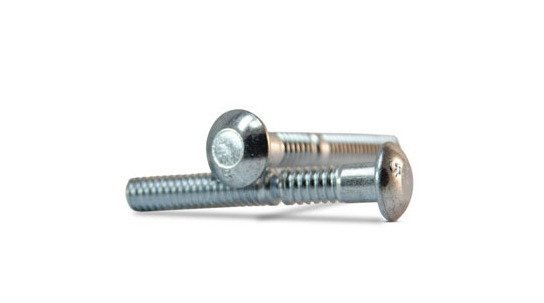

Carbon Steel Standard Brazier Head Lock Bolt - 1/4"
Carbon Steel Standard Brazier Head Lock Bolt - 1/4"
SKU:STA-c55729
Durable Carbon Steel Lock Bolt - 1/4" Diameter, 1.770" Max. Mandrel Length. Ideal for Industrial Use.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Carbon Steel Standard Brazier Head Lock Bolt - 1/4"
$12.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Standard Brazier Head Lock Bolt - 1/4"
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Standard Brazier Head Lock Bolt is a reliable fastening solution designed for industrial applications. With precise dimensions including a 1.770-inch maximum mandrel length and zinc finish, this bolt offers exceptional durability and strength. Meeting stringent industry standards for minimum shear and tensile strength, this bolt ensures secure fastening in diverse environments. Trust this bolt for your projects requiring precise engineering and high-performance standards.
Product Specifications
Dimensions Diameter
1/4 in
Dimensions Dimension A
0.254 to 0.259 in
Dimensions Maximum Grip Range
0.188 in
Dimensions Maximum Head Diameter
0.525 in
Dimensions Maximum Hole Diameter
0.266 in
Dimensions Maximum Hole Size
0.266 in
Dimensions Maximum Length
1.922 in
Dimensions Maximum Mandrel Length
1.770 in
Dimensions Minimum Grip Range
0.313 in
Dimensions Minimum Head Diameter
0.475 in
Dimensions Minimum Hole Diameter
0.256 in
Dimensions Minimum Length
1.781 in
Dimensions Minimum Mandrel Length
1.645 in
Dimensions Minimum Shear Strength
1383 in
Dimensions Minimum Tensile Strength
1361 in
Dimensions Nominal Drill Side
0.261 in
Dimensions Nominal Head Diameter
0.500 in
Dimensions Nominal Mandrel Length
1.708 in
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc
Technical Specs Head B
0.475 to 0.525 in
Technical Specs Head C
0.136 to 0.152 in
Technical Specs Head Shape
Braizier Head
Technical Specs Material
Carbon Steel
