Carbon Steel Straight Coupling - 18.0mm - DIN 2353
Carbon Steel Straight Coupling - 18.0mm - DIN 2353
SKU:FIT-05419d
High-quality Carbon Steel Straight Coupling for hydraulic systems. Pressure: Light Duty. Tube Diameter: 18.0mm. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Straight Coupling - 18.0mm - DIN 2353
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Straight Coupling - 18.0mm - DIN 2353
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

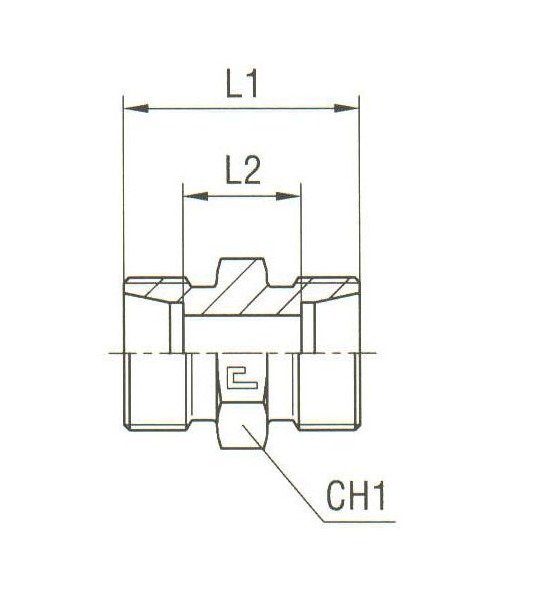

The Carbon Steel Straight Coupling is a robust fitting designed for light duty applications. With a tube diameter of 18.0mm and a nominal operating pressure of 315 bar, this coupling is manufactured to meet DIN 2353 standards. Its precise dimensions, including L1, L2, and CH1 measurements, ensure secure connections while maintaining optimal flow. Ideal for hydraulic systems requiring reliable coupling solutions.
Product Specifications
Specifications Ch1
27 mm
Specifications L1
31.0 mm
Specifications L2
16.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
