Carbon Steel Straight Coupling with Equipped B4 Ring
Carbon Steel Straight Coupling with Equipped B4 Ring
SKU:FIT-b9eae0
Durable Carbon Steel Straight Coupling with Equipped B4 Ring, meets DIN 2353 standards, perfect for light-duty applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Straight Coupling with Equipped B4 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Straight Coupling with Equipped B4 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

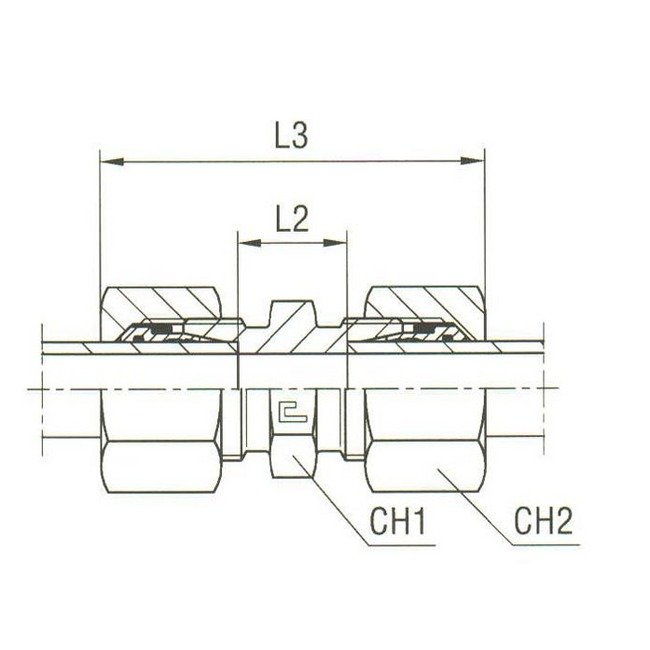

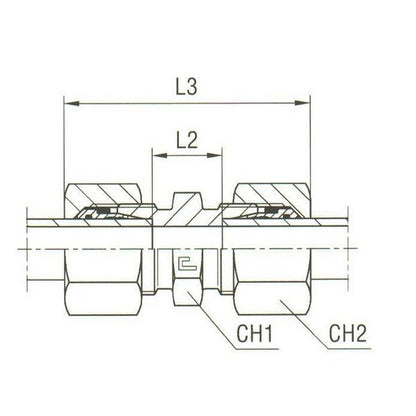

The Carbon Steel Straight Coupling with Equipped B4 Ring is a durable fitting designed for light-duty applications. With a tube diameter of 10.0mm and a nominal operating pressure of 315 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, it offers a secure connection with dimensions L2: 13.0mm, L3: 42mm, CH1: 17.0mm, CH2: 19.0mm. Ideal for equal fittings in compression applications.
Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
19.0 mm
Specifications L2
13.0 mm
Specifications L3
42 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
