Carbon Steel Straight Coupling with Equipped B4 Ring
Carbon Steel Straight Coupling with Equipped B4 Ring
SKU:FIT-de026a
Durable Carbon Steel Straight Coupling for hydraulic systems. Meets DIN 2353 standards.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Carbon Steel Straight Coupling with Equipped B4 Ring
$32.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Straight Coupling with Equipped B4 Ring
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

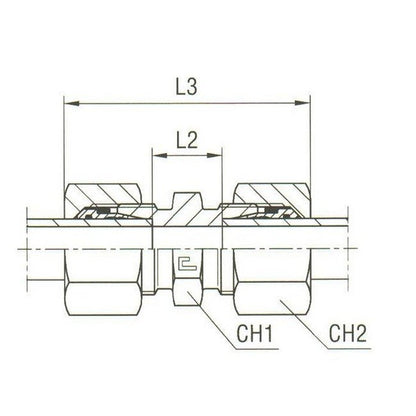

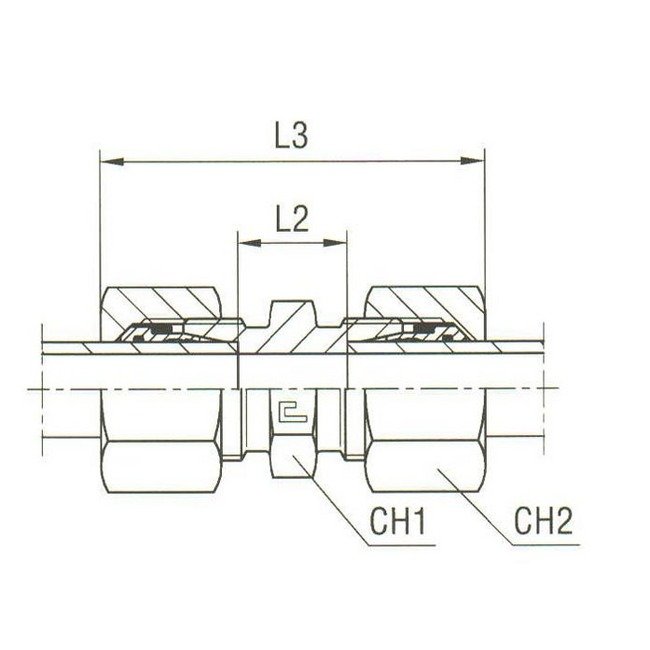

The Carbon Steel Straight Coupling with Equipped B4 Ring is designed for light-duty applications with a Tube Diameter of 15.0mm and a Nominal Operating Pressure of 315 bar. This fitting meets DIN 2353 standards, ensuring reliability and performance. With precise dimensions including L2: 16.0mm, L3: 46mm, CH1: 24mm, and CH2: 27mm, this coupling offers a secure connection for various hydraulic systems.
Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
27 mm
Specifications L2
16.0 mm
Specifications L3
46 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
