Carbon Steel T-Handle Mini Needle Valve, Female x Female, 1/4 in, 6000 psi
Carbon Steel T-Handle Mini Needle Valve, Female x Female, 1/4 in, 6000 psi
SKU:MIN-2751b7
High-performance Carbon Steel T-Handle Mini Needle Valve for precision flow control in industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Carbon Steel T-Handle Mini Needle Valve, Female x Female, 1/4 in, 6000 psi
$49.99
Quantity: 1
Claim Your Seller Account
Carbon Steel T-Handle Mini Needle Valve, Female x Female, 1/4 in, 6000 psi
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Female x Female Carbon Steel Material T-Handle Mini Needle Valve is a precision-engineered valve designed for durability and high performance. Featuring a hard seat for elevated temperature resistance, double PTFE stem packing, and double Fluorocarbon (FKM) O-ring backup, this valve ensures reliable and leak-free operation. Crafted from high-quality Carbon Steel, with a 304 Stainless Steel stem, it offers exceptional strength and corrosion resistance. With a pressure rating of 6000 psi, this valve is ideal for industrial applications where precision flow control is crucial.
Product Specifications
Technical Specs Body Material
Carbon Steel
Technical Specs Bonnet Material
Carbon Steel

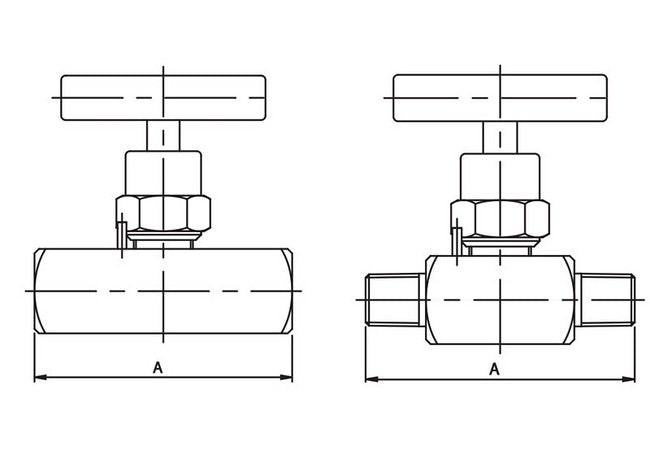

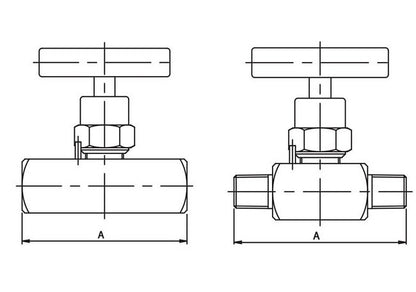

Technical Specs Dimension A
2.28 in
Technical Specs Dimension B
0.87 in
Technical Specs Dimension C
2.28 in
Technical Specs Dimension D
1.81 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
Carbon Steel
Technical Specs Material
Carbon Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
304 Stainless Steel
Technical Specs Thread Type
Female x Female
