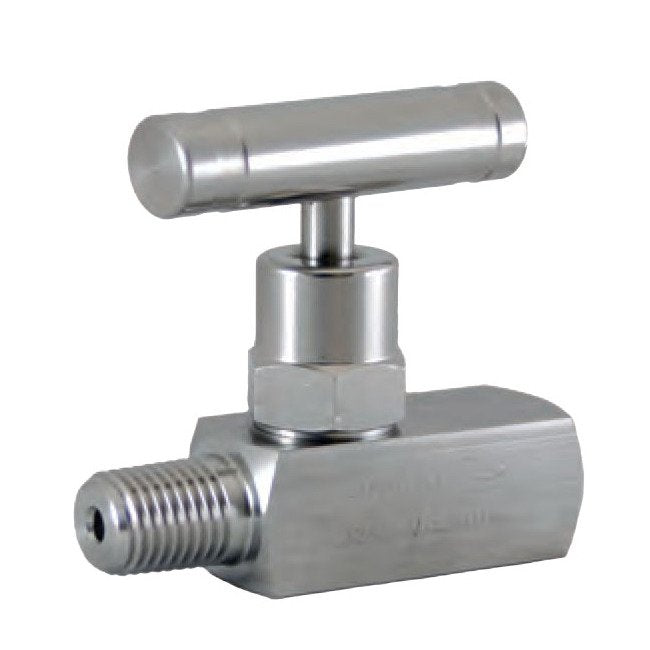

Carbon Steel T-Handle Mini Needle Valve, Male x Female, 1/4x1/4 in, 6000 psi
Carbon Steel T-Handle Mini Needle Valve, Male x Female, 1/4x1/4 in, 6000 psi
SKU:MIN-e6fbcf
High-performance Carbon Steel T-Handle Mini Needle Valve for precise flow control in demanding applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Carbon Steel T-Handle Mini Needle Valve, Male x Female, 1/4x1/4 in, 6000 psi
$45.99
Quantity: 1
Claim Your Seller Account
Carbon Steel T-Handle Mini Needle Valve, Male x Female, 1/4x1/4 in, 6000 psi
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel T-Handle Mini Needle Valve features durable construction with a double PTFE stem packing and double Fluorocarbon (FKM) O-ring back up for reliable performance. Its hard seat is designed for higher temperature ratings, making it suitable for demanding industrial applications. With precise dimensions, sturdy carbon steel components, and a 304 stainless steel stem, this valve ensures secure and efficient flow control while meeting the highest quality standards.
Product Specifications
Technical Specs Body Material
Carbon Steel
Technical Specs Bonnet Material
Carbon Steel

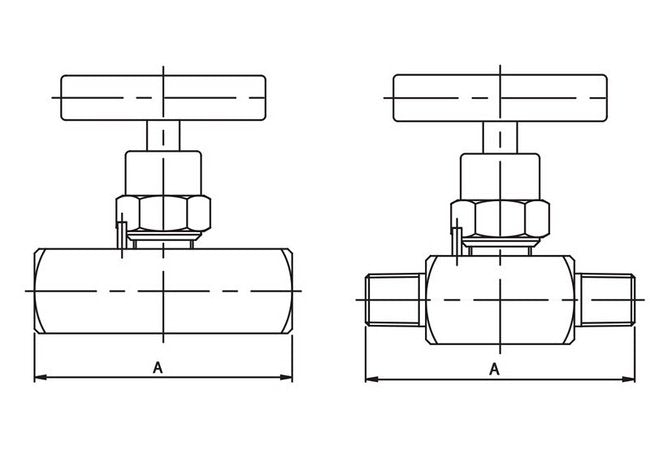

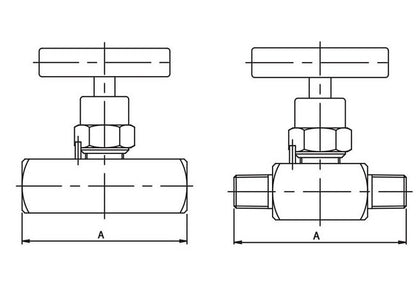

Technical Specs Dimension A
2.28 in
Technical Specs Dimension B
0.87 in
Technical Specs Dimension C
2.28 in
Technical Specs Dimension D
1.81 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
Carbon Steel
Technical Specs Material
Carbon Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
304 Stainless Steel
Technical Specs Thread Type
Male x Female
