Carbon Steel T-Handle Mini Needle Valve, Male x Male 1/4"
Carbon Steel T-Handle Mini Needle Valve, Male x Male 1/4"
SKU:MIN-c9af68
Precision-engineered Carbon Steel T-Handle Mini Needle Valve for optimal flow control in high-pressure applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Carbon Steel T-Handle Mini Needle Valve, Male x Male 1/4"
$29.99
Quantity: 1
Claim Your Seller Account
Carbon Steel T-Handle Mini Needle Valve, Male x Male 1/4"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

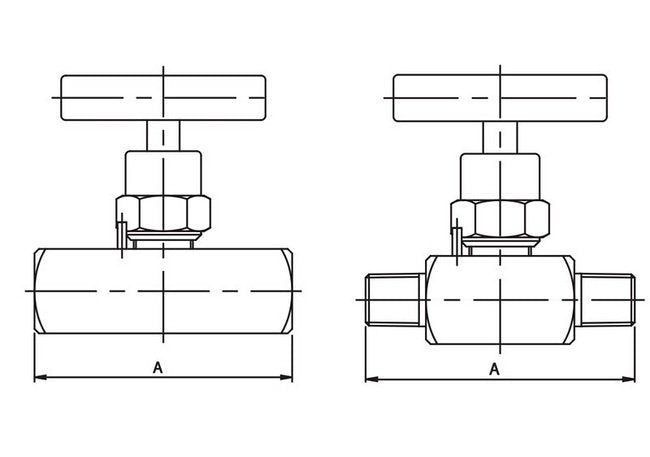

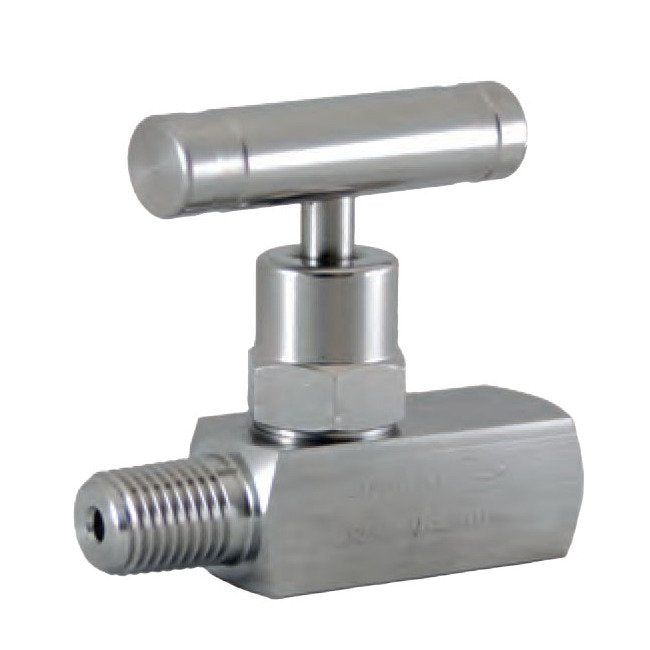

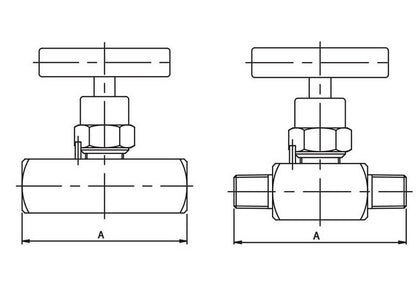

The Male x Male Carbon Steel Material T-Handle Mini Needle Valve is expertly crafted for precision flow control. With double PTFE stem packing and double Fluorocarbon (FKM) O-ring backup, this valve ensures tight seals and optimal performance. Its hard seat design enhances temperature resistance, making it ideal for high-pressure applications. Crafted from durable carbon steel with 304 stainless steel stem, this valve guarantees longevity and reliability. Measuring 2.28" x 0.87" x 2.28" (Dimensions A, B, C), it offers a stable and compact solution for your industrial needs.
Product Specifications
Technical Specs Body Material
Carbon Steel
Technical Specs Bonnet Material
Carbon Steel
Technical Specs Dimension A
2.28 in
Technical Specs Dimension B
0.87 in
Technical Specs Dimension C
2.28 in
Technical Specs Dimension D
1.81 in
Technical Specs Dimension E
0.75 in
Technical Specs Handle Material
Carbon Steel
Technical Specs Material
Carbon Steel
Technical Specs Pressure Rating
6000 psi
Technical Specs Size
1/4 x 1/4 in
Technical Specs Stem Material
304 Stainless Steel
Technical Specs Thread Type
Male x Male
