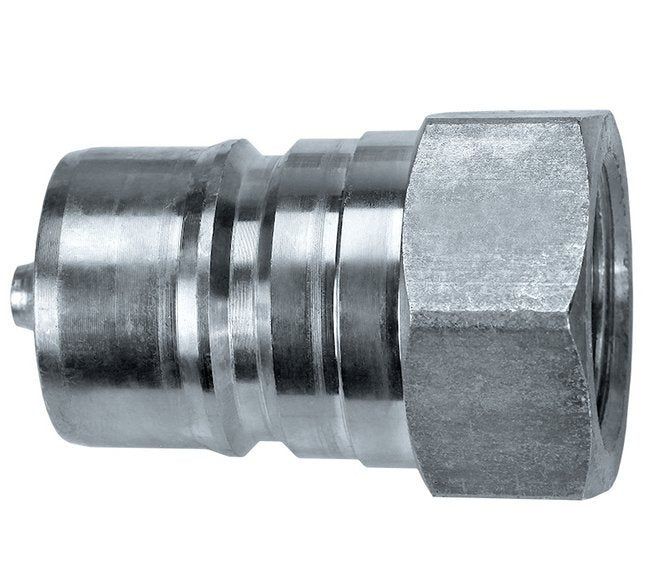

Carbon Steel Type A Hydraulic Plug, 1.37 in Overall Length
Carbon Steel Type A Hydraulic Plug, 1.37 in Overall Length
SKU:COU-3adf9d
Enhance hydraulic systems with our ISO 7241-A compliant Carbon Steel Type A Hydraulic Plug for robust and versatile connectivity.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
Carbon Steel Type A Hydraulic Plug, 1.37 in Overall Length
$17.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Type A Hydraulic Plug, 1.37 in Overall Length
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your hydraulic systems with the Seal Fast Carbon Steel Type A Hydraulic Plug. Compliant with ISO 7241-A standard, this plug offers a robust construction with a working pressure of 4600 psi and a working temperature range of -13 to +250 ºF. Interchangeable with various leading brands, including Hansen, Parker, Faster, Stucchi, and Safeway, this Quick Connect Plug is ideal for a wide range of hydraulic applications in construction, manufacturing, and plant maintenance.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Body Size
1/4 in
Specifications End Size
1/4 in. Female NPT
Specifications Hex Size
19 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
20 mm | 0.78 in
Specifications Overall Length
35 mm | 1.37 in
Specifications Style
Hydraulic Plugs
Specifications Type
A
Specifications Working Pressure
4600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
