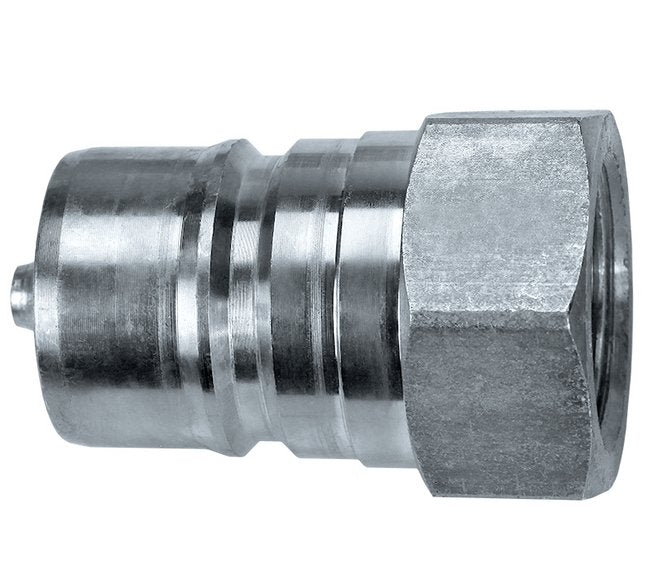

Carbon Steel Type A Hydraulic Plug - 1.53in Length
Carbon Steel Type A Hydraulic Plug - 1.53in Length
SKU:COU-ee8a07
High-performance Carbon Steel Type A Hydraulic Plug, interchangeable with various series, ideal for diverse hydraulic applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Carbon Steel Type A Hydraulic Plug - 1.53in Length
$25.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Type A Hydraulic Plug - 1.53in Length
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Type A Quick Connect Hydraulic Plug, designed to meet ISO 7241-A standard, offers exceptional performance and durability. This hydraulic plug by Seal Fast features a body size of 3/8in, working pressure of 4000 psi, and a working temperature range of -13 to +250 ºF. Suitable for various hydraulic applications in construction, manufacturing, and in-plant systems, this plug is interchangeably compatible with Hansen, Parker, Faster, Stucchi, and Safeway series. Its rugged construction makes it ideal for mobile applications like dump trucks, snow plows, mining equipment, and more.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Body Size
3/8 in
Specifications End Size
3/8 in. Female NPT
Specifications Hex Size
22 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
26 mm | 1.02 in
Specifications Overall Length
39 mm | 1.53 in
Specifications Style
Hydraulic Plugs
Specifications Type
A
Specifications Working Pressure
4000 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
