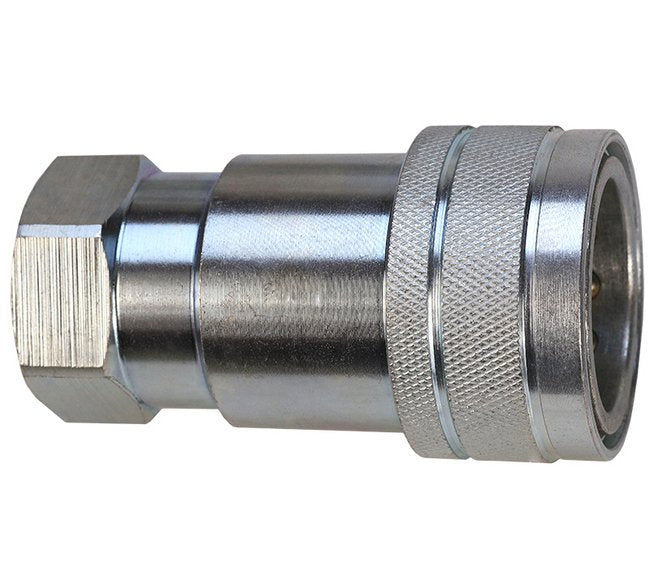

Upgrade your hydraulic systems with the Seal Fast Carbon Steel Type A Quick Connect Hydraulic Socket, meeting ISO 7241-A standard. Crafted from durable carbon steel with Zinc Plating and Cr 3+ Passivation, this socket ensures reliable performance. Featuring interchangeable compatibility with major brands like Hansen and Parker, it's ideal for hydraulic applications in construction, manufacturing, and more, offering a working pressure of 4000 psi and a temperature range of -13 to +250 ºF. Rugged construction makes it perfect for both stationary and mobile applications.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Balls
GCr 16
Specifications Body Size
3/8 in
Specifications Coupler Material
Steel
Specifications End Size
3/8 in. Female NPT
Specifications Hex Size
22 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Locking O Ring Material
Spring Steel
Specifications Material
Carbon Steel
Specifications Overall Diameter
31 mm | 1.22 in
Specifications Overall Length
57 mm | 2.24 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Spring Material
Spring Steel
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating and Cr 3+ Passivation
Specifications Type
A
Specifications Valve Material
Steel
Specifications Working Pressure
4000 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
