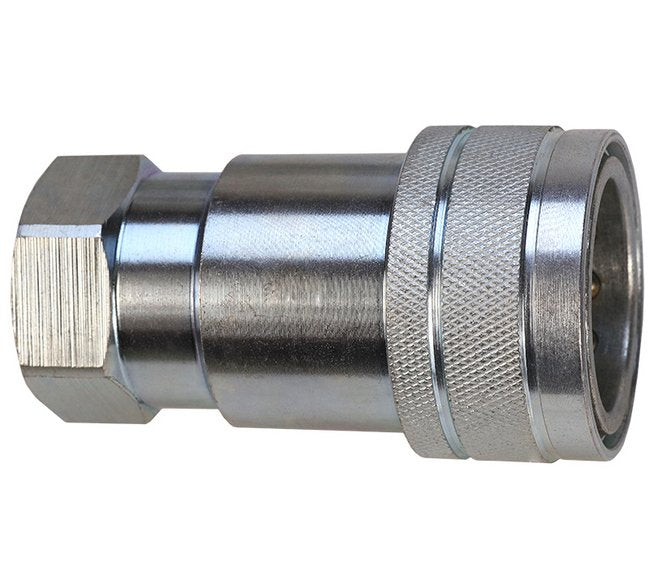

Carbon Steel Type A Quick Connect Hydraulic Socket - 3.24 in Overall Length
Carbon Steel Type A Quick Connect Hydraulic Socket - 3.24 in Overall Length
SKU:COU-847c0f
High-performance Carbon Steel Type A Quick Connect Hydraulic Socket, compliant with ISO 7241-A standard. Ideal for construction and manufacturing applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Carbon Steel Type A Quick Connect Hydraulic Socket - 3.24 in Overall Length
$49.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Type A Quick Connect Hydraulic Socket - 3.24 in Overall Length
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Type A Quick Connect Hydraulic Socket, with a 3/4 in Body Size and Female NPT End Size, is a robust hydraulic coupling designed to meet ISO 7241-A standard. Constructed with durable materials including Carbon Steel and Spring Steel components, it features a Zinc Plating and Cr 3+ Passivation surface treatment. This coupling ensures secure and efficient fluid transfer in demanding hydraulic applications such as construction equipment, manufacturing machinery, and mobile systems.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Balls
GCr 18
Specifications Body Size
3/4 in
Specifications Coupler Material
Steel
Specifications End Size
3/4 in. Female NPT
Specifications Hex Size
34 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Locking O Ring Material
Spring Steel
Specifications Material
Carbon Steel
Specifications Overall Diameter
54 mm | 2.12 in
Specifications Overall Length
82.5 mm | 3.24 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Spring Material
Spring Steel
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating and Cr 3+ Passivation
Specifications Type
A
Specifications Valve Material
Steel
Specifications Working Pressure
3600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
