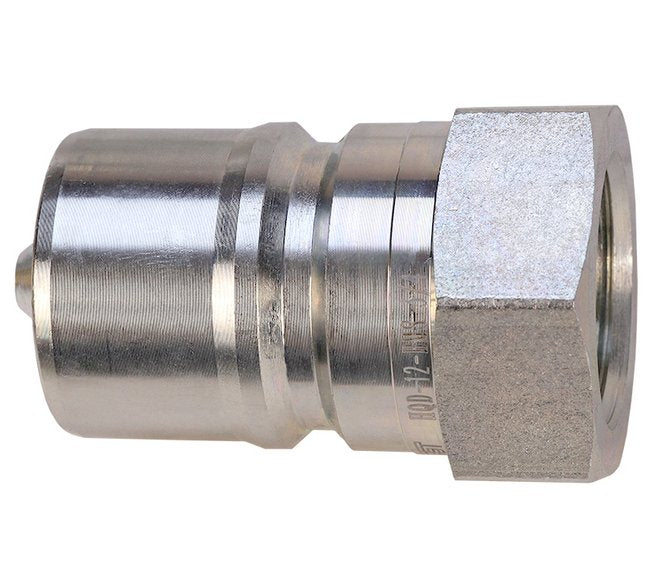

Carbon Steel Type B Hydraulic Plug 1.37in Length
Carbon Steel Type B Hydraulic Plug 1.37in Length
SKU:COU-c83952
High-quality Carbon Steel Type B Hydraulic Plug for reliable hydraulic connections in demanding industrial applications.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Carbon Steel Type B Hydraulic Plug 1.37in Length
$23.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Type B Hydraulic Plug 1.37in Length
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Seal Fast Carbon Steel Type B Quick Connect Hydraulic Plug is meticulously crafted to meet stringent ISO 7241-A standards. Constructed from durable carbon steel, this hydraulic plug ensures reliable performance in a wide array of hydraulic applications. With working pressures of up to 4600 psi and a temperature range spanning from -13 to +250 ºF, this plug excels in demanding environments like construction equipment, manufacturing machinery, and mobile applications. Compatible with various series, including Hansen HA15000, Parker 6600, and Faster Anv, this plug offers versatility and efficiency for seamless fluid transfer operations.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (7241-A)
Specifications Body Size
1/4 in
Specifications End Size
1/4 in. Female NPT
Specifications Hex Size
19 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
20 mm | 0.78 in
Specifications Overall Length
35 mm | 1.37 in
Specifications Style
Hydraulic Plugs
Specifications Type
B
Specifications Working Pressure
4600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
