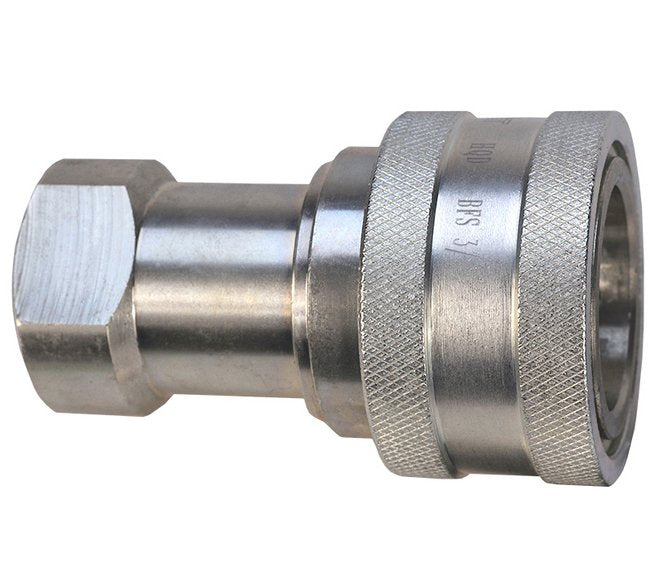

Carbon Steel Type B Hydraulic Socket - 2.59in Overall Length
Carbon Steel Type B Hydraulic Socket - 2.59in Overall Length
SKU:COU-3e863b
Durable Carbon Steel Type B Hydraulic Socket - ISO 7241-A Compliant for Secure Connections
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Carbon Steel Type B Hydraulic Socket - 2.59in Overall Length
$44.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Type B Hydraulic Socket - 2.59in Overall Length
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel Type B Quick Connect Hydraulic Socket is a versatile solution for hydraulic applications, meeting ISO 7241-A standard with precision. Crafted from high-quality carbon steel, this socket offers durability and reliability. With features like Zinc Plating, Spring Steel components, and Buna-N seals, it ensures secure connections under demanding conditions. Ideal for construction equipment, manufacturing machinery, and mobile applications, this hydraulic socket excels in rugged environments.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (ISO 7241-A)
Specifications Balls
GCr 17
Specifications Body Size
1/2 in
Specifications Coupler Material
Steel
Specifications End Size
1/2 in. Female NPT
Specifications Hex Size
27 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Locking O Ring Material
Spring Steel
Specifications Material
Carbon Steel
Specifications Overall Diameter
38 mm | 1.49 in
Specifications Overall Length
66 mm | 2.59 in
Specifications Seal Material
Buna-N (Nitrile)
Specifications Spring Material
Spring Steel
Specifications Style
Hydraulic Sockets
Specifications Surface Treatment
Zinc Plating and Cr 3+ Passivation
Specifications Type
B
Specifications Valve Material
Steel
Specifications Working Pressure
3600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
