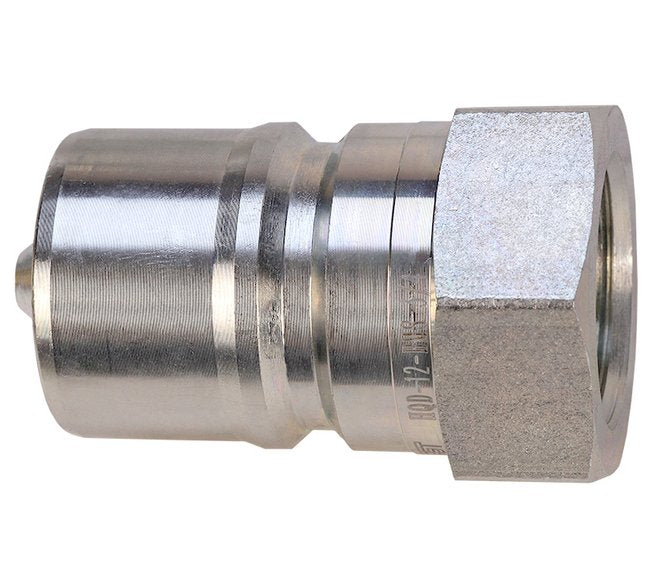

Carbon Steel Type B Quick Connect Hydraulic Plug - 1.53 in Length

Name: Carbon Steel Type B Quick Connect Hydraulic Plug - 1.53 in Length
Brand: Seal Fast, Inc.
SKU: COU-a449bf
Price: 25.99 USD
Availability: OutOfStock

SKU:COU-a449bf

High-quality Carbon Steel Type B Quick Connect Hydraulic Plug meeting ISO 7241-A standard, ideal for construction and manufacturing applications.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Carbon Steel Type B Quick Connect Hydraulic Plug, with an overall length of 1.53 inches, is built to demanding specifications, meeting ISO 7241-A standard. Crafted from durable carbon steel, this plug features a 3/8 inch body size, 4000 psi working pressure, and a working temperature range of -13 to +250 ºF. Ideal for hydraulic applications in construction, manufacturing, and mobile machinery, it offers reliability and ease of use. Approved by the International Organization for Standardization (ISO), this plug ensures seamless fluid transfer, making it a trusted choice for critical operations.

Product Specifications

Applications

This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.

Specifications Approvals

International Organization for Standardization (7241-A)

Specifications Body Size

3/8 in

Specifications End Size

3/8 in. Female NPT

Specifications Hex Size

22 mm

Specifications Interchangeable With

Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series

Specifications Material

Carbon Steel

Specifications Overall Diameter

26 mm | 1.02 in

Specifications Overall Length

39 mm | 1.53 in

Specifications Style

Hydraulic Plugs

Specifications Type

Specifications Working Pressure

4000 psi

Specifications Working Temperature Range

-13 to +250 ºF | -25 to +120 ºC

Carbon Steel Type B Quick Connect Hydraulic Plug - 1.53 in Length
