Carbon Steel Type B Quick Connect Hydraulic Plug - 2.16in Length
Carbon Steel Type B Quick Connect Hydraulic Plug - 2.16in Length
SKU:COU-ce1cbf
High-performance Carbon Steel Type B Hydraulic Plug, 2.16in length, ISO 7241-A compliant. Ideal for diverse hydraulic applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Carbon Steel Type B Quick Connect Hydraulic Plug - 2.16in Length
$24.99
Quantity: 1
Claim Your Seller Account
Carbon Steel Type B Quick Connect Hydraulic Plug - 2.16in Length
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

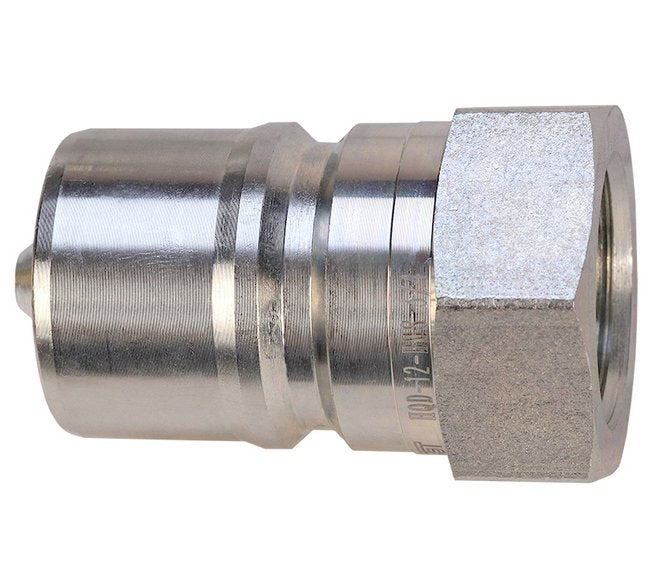

The Carbon Steel Type B Quick Connect Hydraulic Plug, with an overall length of 2.16 inches, is engineered to precision and meets ISO 7241-A standard requirements. Crafted from durable carbon steel, it features a 3/4 inch body size with a 3/4 inch female NPT end size, ensuring a secure connection. With a working pressure of 3600 psi and a broad temperature range from -13 to +250 ºF, this plug is versatile and reliable in various hydraulic applications, such as construction equipment, manufacturing machinery, and more.
Product Specifications
Applications
This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
Specifications Approvals
International Organization for Standardization (7241-A)
Specifications Body Size
3/4 in
Specifications End Size
3/4 in. Female NPT
Specifications Hex Size
34 mm
Specifications Interchangeable With
Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series
Specifications Material
Carbon Steel
Specifications Overall Diameter
37 mm | 1.45 in
Specifications Overall Length
55 mm | 2.16 in
Specifications Style
Hydraulic Plugs
Specifications Type
B
Specifications Working Pressure
3600 psi
Specifications Working Temperature Range
-13 to +250 ºF | -25 to +120 ºC
