Carbon Steel Type B Quick Connect Hydraulic Socket - 3.24in Overall Length

Name: Carbon Steel Type B Quick Connect Hydraulic Socket - 3.24in Overall Length
Brand: Seal Fast, Inc.
SKU: COU-227bdc
Price: 49.99 USD
Availability: OutOfStock

SKU:COU-227bdc

Durable Carbon Steel Type B Hydraulic Socket meeting ISO 7241-A standard, ideal for various hydraulic applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

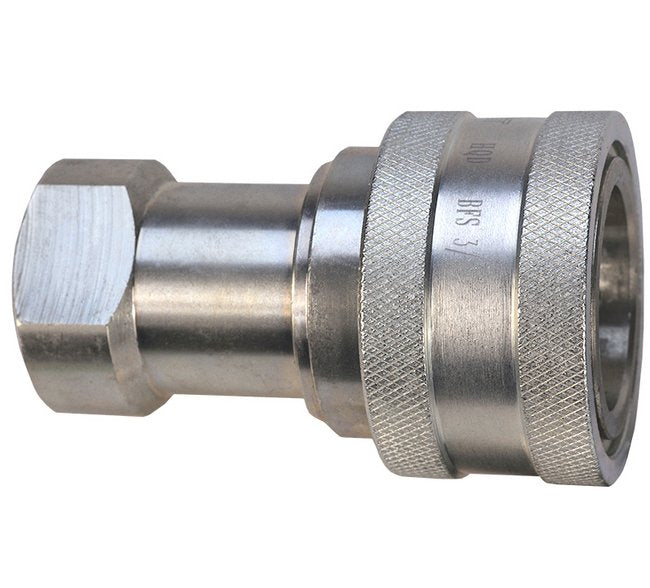

The Carbon Steel Type B Quick Connect Hydraulic Socket features a durable construction meeting ISO 7241-A standard. Crafted from high-quality materials including carbon steel, steel coupler, and valve, this hydraulic socket ensures reliable performance. With a working pressure of 3600 psi and a wide temperature range, it is ideal for various hydraulic applications in construction, manufacturing, and plant systems. Interchangeable with multiple series, this socket offers versatility and efficiency in fluid transfer processes.

Product Specifications

Applications

This series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.Rugged construction makes these couplings a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.

Specifications Approvals

International Organization for Standardization (ISO 7241-A)

Specifications Balls

GCr 18

Specifications Body Size

3/4 in

Specifications Coupler Material

Steel

Specifications End Size

3/4 in. Female NPT

Specifications Hex Size

34 mm

Specifications Interchangeable With

Hansen HA15000 SeriesParker 6600 SeriesFaster Anv SeriesStucchi Bir SeriesSafeway S565 Series

Specifications Locking O Ring Material

Spring Steel

Specifications Material

Carbon Steel

Specifications Overall Diameter

54 mm | 2.12 in

Specifications Overall Length

82.5 mm | 3.24 in

Specifications Seal Material

Buna-N (Nitrile)

Specifications Spring Material

Spring Steel

Specifications Style

Hydraulic Sockets

Specifications Surface Treatment

Zinc Plating and Cr 3+ Passivation

Specifications Type

Specifications Valve Material

Steel

Specifications Working Pressure

3600 psi

Specifications Working Temperature Range

-13 to +250 ºF | -25 to +120 ºC
