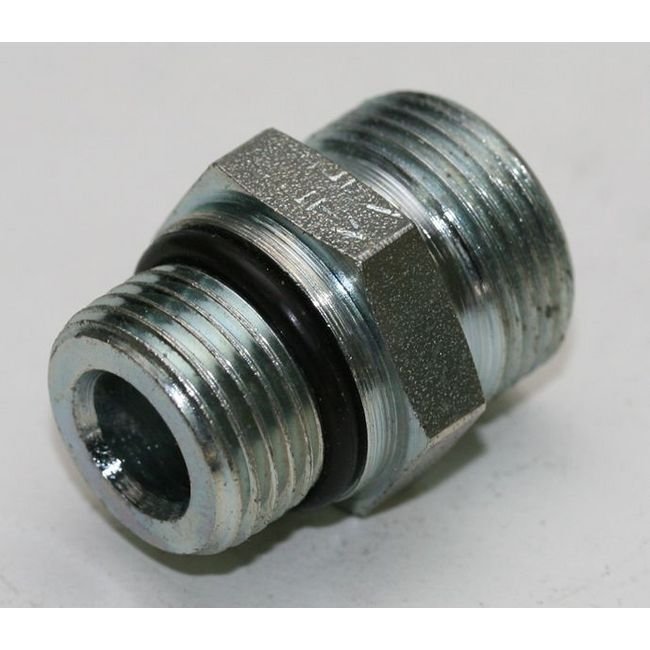

Carbon Steel UNF/UN-2A Male Stud Coupling with O-Ring Thread

Name: Carbon Steel UNF/UN-2A Male Stud Coupling with O-Ring Thread
Brand: World Wide Metric, Inc.
SKU: FIT-cfd65f
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-cfd65f

High-quality Carbon Steel Male Stud Coupling for secure and leak-free connections in light-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

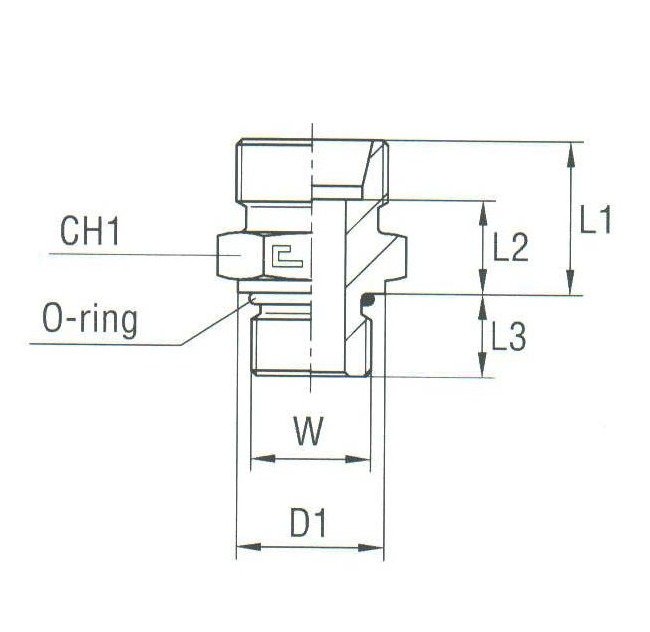

The Carbon Steel UNF/UN-2A Male Stud Coupling with O-Ring Thread is designed for light-duty applications, with a tube diameter of 22mm and a nominal operating pressure of 160 bar. Meeting DIN 2353 standards, this coupling offers precise engineering with L1: 23.9mm, L2: 16.4mm, L3: 15.1mm dimensions. Its W - Thread Size of 1 1/16-12 ensures secure connections, making it ideal for various industrial uses.

Product Specifications

Specifications Ch1

32 mm

Specifications D1

31.8 mm

Specifications L1

23.9 mm

Specifications L2

16.4 mm

Specifications L3

15.1 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm

Specifications W Thread Size

1 1/16-12
