The Carbon Steel USS Flat Washer in 3/16 in size is a durable and reliable hardware component essential for various applications. Constructed from high-quality carbon steel with a plain finish, this USS Flat Washer offers exceptional performance and strength. Its wide series design ensures a secure fit and optimal load distribution. Ideal for industrial, construction, and maintenance projects, this washer meets stringent quality standards and is designed to withstand heavy-duty use.
Product Specifications
Application Area Area Of Application
We demand more and more from machine tools - greater speeds, higher accuracy, and better quality. Our demands have led to extraordinary progress in the processing technology.Capabilities that we did not expect earlier are standard today. Modern high-speed machines offer impressive advantages.The increased requirements for accuracy, however, can only be fulfilled when tool, tool holder, and spindle are precisely balanced. Increasing operating speeds lead to increasing unbalance-related forces. The consequences are dangerous vibrations, rattling, poor surface quality, and increased wear of the tool and spindle bearing.Because we are further expanding our present production capacities, and we want to exceed the quality standards that our customers expect, fine balancing is increasingly important.Tooldyne SV was especially developed to achieve high-precision results in as short a time as possible, and particularly for a broad spectrum of tools and tool receiving sockets.
Design Design

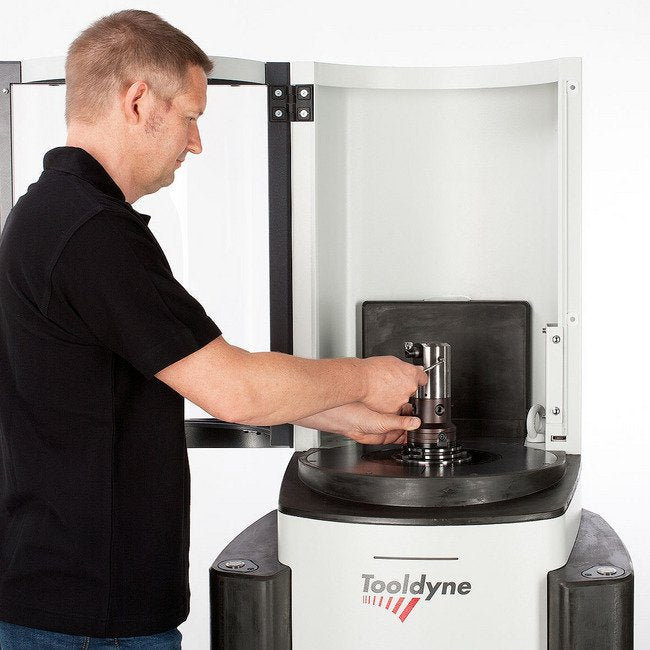

Force-measuring vertical balancing machines, compact in design. Operation-friendly menu guidance and display on a monitor.A pneumatically actuated clamping mechanism pulls the tool automatically into the spindle in order to reproduce the operating conditions exactly and ensure reproducible seat, which is indispensable for fine balancing.
Machine Machine Depth
550 mm
Machine Machine Height
1700 mm
Machine Machine Width
500 mm

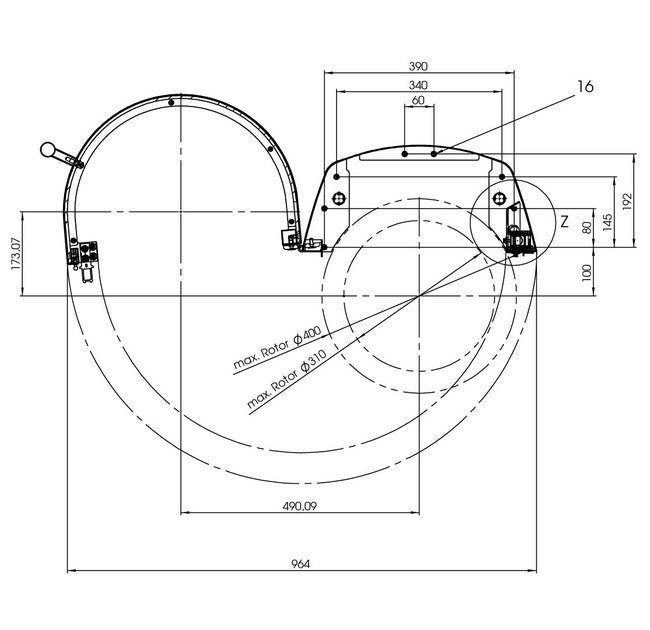

Rotor Maximum Diameter
400 mm
Rotor Maximum Length
600 mm
Rotor Rotor Weight
30 kg
Special Features Special Features

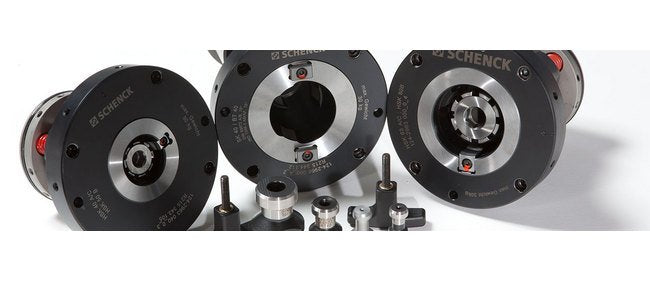

Short retooling time by means of force measuring principlePneumatically actuated quick-clamping system for reproducible tool seatBalancing in one or two levelsSpace-saving monoblock design with integrated measuring station and measuring deviceThrough permanent calibration, ease of operation, no calibration runs requiredBalancing possible in one or two levelsA screw-in indicator with laser marking serves for accurate locating of compensation placeAutomatic measuring cycle is selectable with stepless, adjustable values for run-up, measuring and braking timeYou can count on the Tooldyne when a simple, quick and cost effective balancing is involvedSafe working on the machine by observing the current machine guidelines 2006/42/EC
Technical Data Air Pressure
600 kPa
Technical Data Balancing Speed
0 to 1200 min-1
Technical Data Brands
SCHENCK
Technical Data Measuring Time
6 to 10 seconds
Technical Data Minimum Achievable Residual Unbalance
0.5 gmm/kg
Technical Data Power Consumption
0.7 kV·A
Technical Data Voltage
230 V
