Carbon Steel USS Flat Washer - Plain 1 3/4 in
Carbon Steel USS Flat Washer - Plain 1 3/4 in
SKU:BAL-4c75e2
High-quality Carbon Steel USS Flat Washer for stable load distribution. Compliant with industry standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Carbon Steel USS Flat Washer - Plain 1 3/4 in
$69.99
Quantity: 1
Claim Your Seller Account
Carbon Steel USS Flat Washer - Plain 1 3/4 in
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel USS Flat Washer - Plain 1 3/4 in is a robust and durable washer designed to provide reliable support and load distribution in various applications. With a Wide Series design, this washer ensures enhanced stability and performance. Crafted from high-quality carbon steel, it offers exceptional strength and corrosion resistance. Weighing 50.00 lb per hundred pieces, this washer is ideal for heavy-duty use. Compliant with industry standards, this washer meets the stringent requirements of institutional and government procurement.
Product Specifications
Design Design

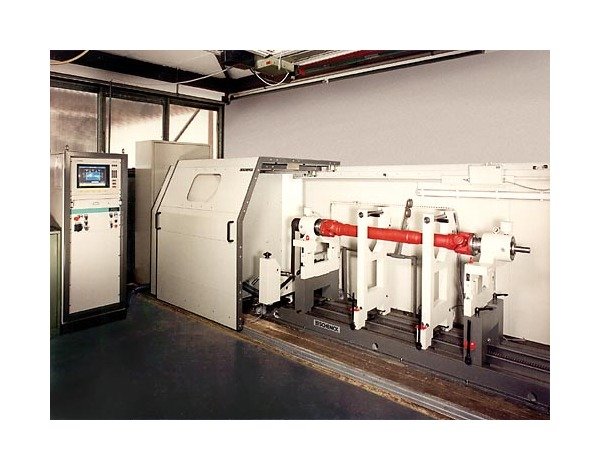

Hard-bearing special balancing machine with horizontal rotor axis and semi-automatic operation.The machine consists basically of: machine base, support pedestals with spindle bearings and vibration sensors, belt-drive with drive motor, control cabinet with measuring unit and drive controls, safety brackets and protective enclosure of the class C according to ISO 7475.

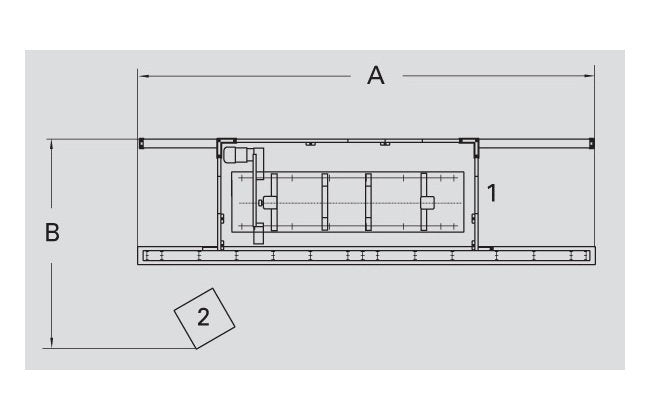

Machine Machine Depth B
2400 mm
Machine Machine Height C
2300 mm
Machine Machine Width A
5500 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Center Pedestal Order Number For 2 Piece Shafts
R0150104.01
Options Drill Correction Order Number
R0150106.01
Options Measuring Unit Cab 920 Order Number
R0150101.01
Options Options
Belt Drive | Center Pedestal for 2-Piece Shafts | Drill Correction | Measuring Unit (CAB 920) | Protective Enclosure | Report Printer | Roller-Bearing Carriages for Rotors with their own Journals | Safety Devices | Software Options | Spindle Adapter - On Request | Spindle Bearings for Drive Shafts | Welding Correction
Options Report Printer Order Number
R0150102.01
Options Roller Bearing Carriages Order Number For Rotors With Th
R0150105.01
Options Software Option Order Number
R0150103.01
Options Welding Correction Order Number
R0150107.01
Range Of Application Range Of Application

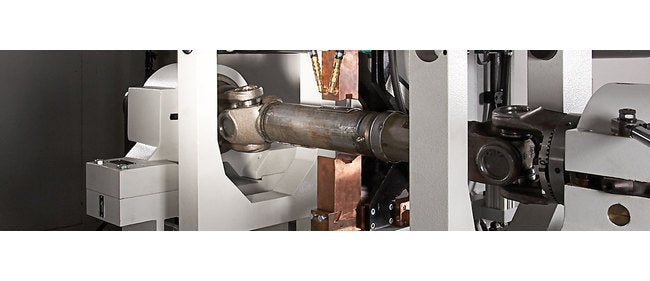

Horizontal, hard-bearing balancing machines series HGW are designed especially for low- and high-speed balancing of drive shafts in overhaul, repair operations and small production lots. A modular design provides flexibility to change or add components for other balancing tasks such as balancing electric armatures, drums, etc.
Rotor Diameter
1600 mm
Rotor Length
2200 mm
Rotor Maximum Rotor Weight
180 kg
Technical Data Air Pressure
600 kPa
Technical Data Balancing Speed
100 to 5000 min-1
Technical Data Basic Machine Order Number
R0150100.01
Technical Data Brands
SCHENCK
Technical Data Drive Power
4 kW
Technical Data Minimum Achievable Residual Unbalance Per Plane
0.5 gmm/kg
Technical Data Sound Pressure Level With Class C Protection Lpa
60 to 70 dBA
