Carbon Steel USS Flat Washer - Plain, Size 7/16 in
Carbon Steel USS Flat Washer - Plain, Size 7/16 in
SKU:BAL-b8b396
High-quality Carbon Steel USS Flat Washer with Plain finish, ideal for heavy-duty applications. Size: 7/16 in.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Carbon Steel USS Flat Washer - Plain, Size 7/16 in
$12.99
Quantity: 1
Claim Your Seller Account
Carbon Steel USS Flat Washer - Plain, Size 7/16 in
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Carbon Steel USS Flat Washer in Plain finish is designed for heavy-duty applications requiring a wide series washer with precise specifications. Made from durable carbon steel, this washer provides reliable load distribution and corrosion resistance. With a size of 7/16 inches and a weight of 2.44 lb per 100 pieces, it meets stringent industrial standards for quality and performance.
Product Specifications
Design Design

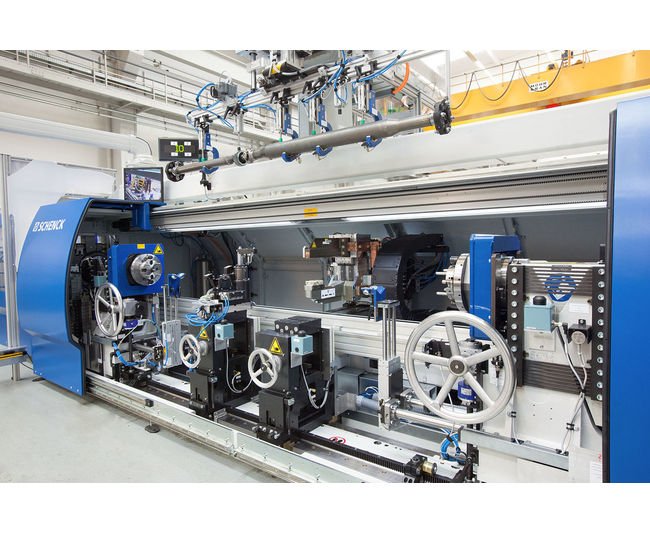

Machine design is ideally suited for balancing vehicle drive shafts. Arrangement of the machine components takes ergonomic requirements into consideration. Vertical arrangement of the correction units.Extremely flat machine base, specially designed for high speed measurement. Isotropically supported bearing pedestals with heavy duty, precision spindles. Variable speed AC main spindle motors are standard equipment.

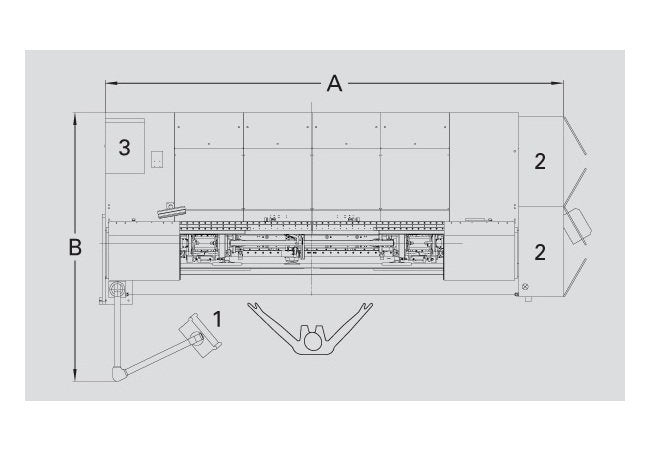

Machine Machine Depth B
2600 mm
Machine Machine Height C
1550 mm
Machine Machine Width A
6100 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Options
Power Clamping Device | Semi Automatic Function Sequence | Semi Automatic Welding System
Range Of Application Range Of Application

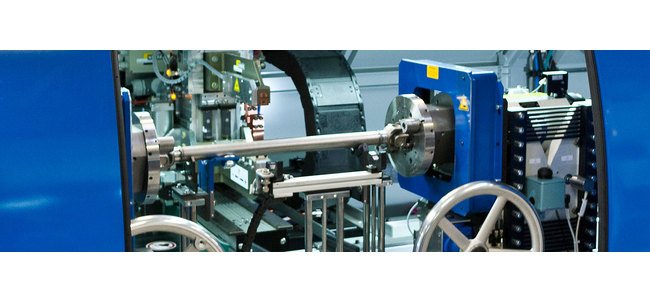

Measurement and correction of unbalance in single and multi-piece drive shafts of passenger vehicles, light and heavy duty commercial vehicles.Balancing and correction capacity for manufacturing, testing and inspection at vehicle manufacturers and component suppliers plants.High speed measurement of unbalance close to or at operating speed.Unbalance correction through spot or projection welding using medium frequency techniques, of preformed correction weights.
Specifications Drive Shaft Length
400 to 3000 mm
Specifications Maximum Drive Shaft Flange Diameter
225 mm
Specifications Tube Diameter
40 to 140 mm
Technical Data Air Pressure
5.5 bar
Technical Data Approximate Air Consumption
6.5 m³/h
Technical Data Brands
SCHENCK
Technical Data Cycle Time
80 to 110 seconds
Technical Data Infinitely Variable Spindle Speed
2000 to 6000 min-1
Technical Data Load Carrying Capacity
4 to 40 kg
Technical Data Machine Bed Length
5000 mm
Technical Data Measuring Uncertainty
5 to 10 g/mm
Technical Data Measuring Unit
CAB 950
Technical Data Power Consumption
125 kV·A
Technical Data Production Volume
30 to 40 pc/h
