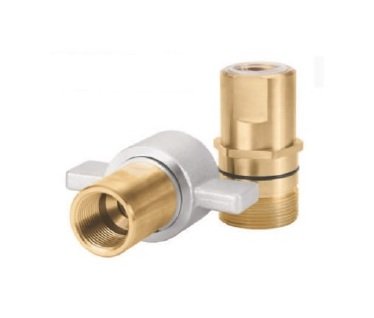

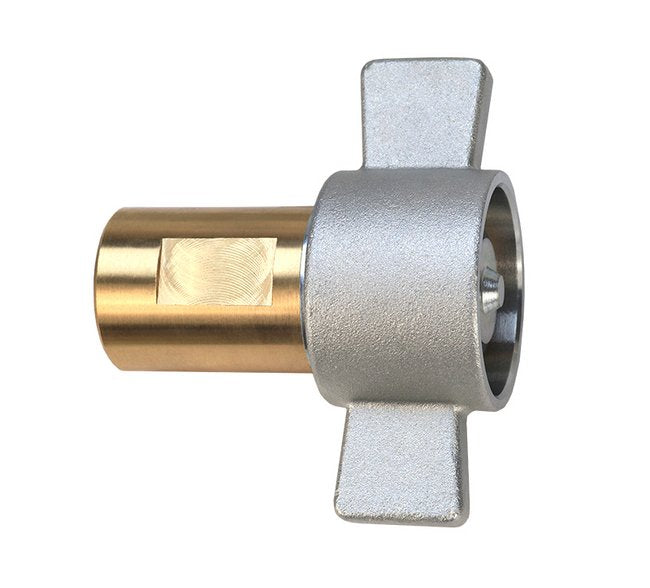

Carbon Steel Wing Nut Quick Connect Hydraulic Socket - 3/4in Body Size

Name: Carbon Steel Wing Nut Quick Connect Hydraulic Socket - 3/4in Body Size
Brand: Seal Fast, Inc.
SKU: COU-1dfb10
Price: 24.99 USD
Availability: OutOfStock

SKU:COU-1dfb10

Durable Carbon Steel Wing Nut Hydraulic Socket, 3/4in Body, 2900 psi, -4 to +176 ºF, Ideal for high-pressure hydraulic systems.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Carbon Steel Wing Nut Quick Connect Hydraulic Socket with a body size of 3/4 inches is an essential component for high-pressure hydraulic systems. Constructed with durable materials and Zinc Plating, this socket ensures reliable performance under pressure. With a working pressure of 2900 psi and a wide temperature range from -4 to +176 ºF, it is ideal for industries such as oil well equipment, sand and salt spreaders, and dump trailers. Compatible with top brands like Aeroquip, Dixon, Parker, and more, this hydraulic socket guarantees secure connections and minimal spills, meeting stringent industry standards.

Product Specifications

Applications

Seal Fast Wing Nut Quick Connects/Disconnects are low spill couplings designed to allow connection under pressure. They are recommended for oil well equipment, sand and salt spreaders, live bottom trailers, dump trailers, etc.

Specifications Body Size

3/4 in

Specifications Connection Type

Female | Socket

Specifications Coupling Type

Wing

Specifications End Size

3/4 in. Female NPT

Specifications Interchangeable With

Parker 6100Snap-Tite 78Aeroquip 5100Dixon W

Specifications Material

Brass | Carbon Steel

Specifications Seal Material

Buna-N (Nitrile)

Specifications Style

Hydraulic Sockets

Specifications Surface Treatment

Zinc Plating

Specifications Working Pressure

2900 psi

Specifications Working Temperature Range

-4 to +176 ºF
